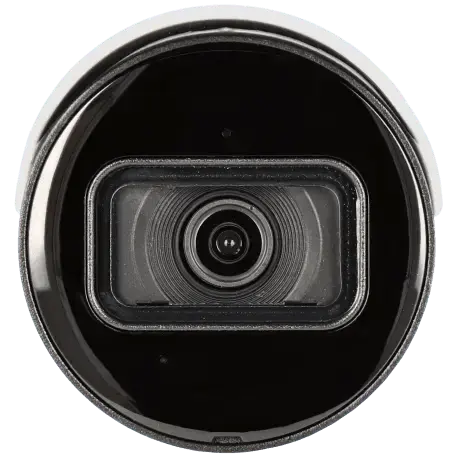

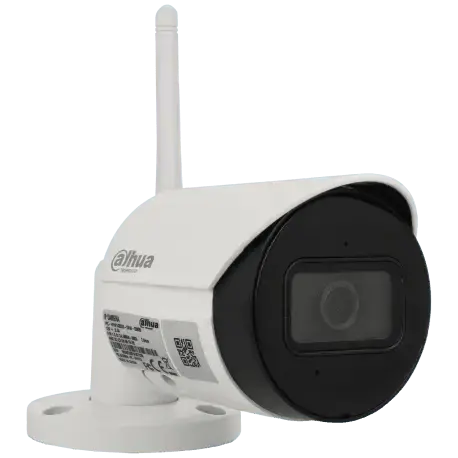

Compact DAHUA IP camera with 4 megapixels and fixed lens / IPC-HFW1430DS-SAW

Video resolution: 4 Megapixels Frames per second: 20fps Video output: RJ45 Day / night mode: Color BLC: Yes 3D-NR: Yes AGC: Yes AWB: Yes WDR: DWDR Type of codec: CBR / VBR Bit Rate: H.264: 24Kbps ~ 4096Kbps / H.265: 9Kbps ~ 4096Kbps Compression: H.265 / H.264 Main stream: 4Mpx (1~20fps) Sub stream: 640×480 (1~25fps) Water mark: Yes Mirror: On / Off

Sensor: CMOS® Sensor resolution: 2560 x 1440 Sensor Size: 1/3" Electronic shutter speed: 1/3 ~ 1/100000s Minimum illumination: Color: 0.03Lux / B/W: 0.003Lux S/N ratio: More than 56dB

Lens Type: Fixed Focal length: 2.8mm Maximum diaphragm aperture: F/2.0 Viewing angle: 90° Minimum focus distance: 1000mm

Night vision distance: 30m Number of LEDs: 1 IR ON/Off: Automatic / Manual

Detect: 68m Observe: 27 m Recognize: 14m Identify: 7m

Built-in microphone: Yes

IP connection: RJ-45 (100 / 1000Base-T) ONVIF: Yes, Type S and G Maximum number of users: 6 users Web browser: Explorer, Chrome, Firefox Management software: Smart PSS, DSS, DMSS Mobile devices: Android / IOS (Apple) Network Disconnect: Yes IP Address Conflicts: Yes Cyber-security: Yes

Motion detection: Yes (4 zones) Audio detection: Yes

Wi-Fi standard: IEEE802.11 b / g / n Frequency band: 2.4 GHz ~ 2.4835 GHz Transmission distance: 80m

Storage system: SD memory microSD card: Up to 256Gb

RAM memory: 64 MB ROM memory: 16MB

Movement: 3 Axis

Material: Metal Dimensions: 166.2 x 128.6 x 70mm Net weight: 500g Weight with packaging: 730 g

Working Temperature: -40ºC~60ºC Degree of protection: IP67 Use: Indoor / Outdoor Max Humidity: 95%

Power mode: DC Voltage: 12V Consumption (w): 4.1W Amperage: 340mA PoE type: Not available Power supply included: Yes

---
