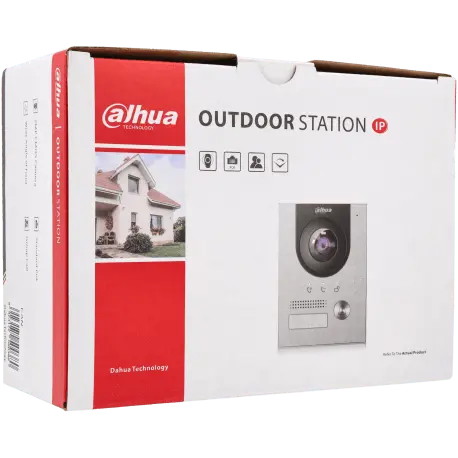

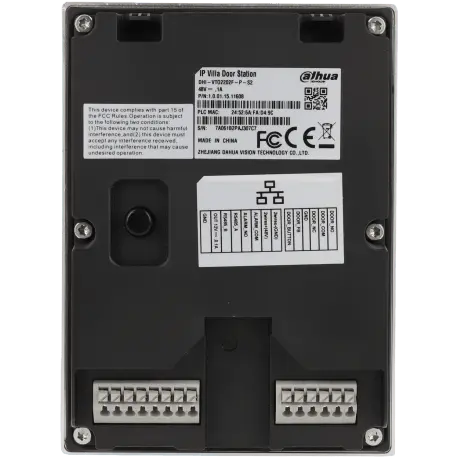

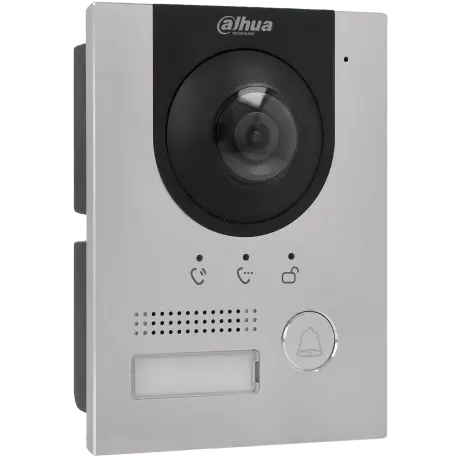

DAHUA IP video entryphone 2 surface wires - flush mounting
Specifications and characteristics: DAHUA IP video entryphone 2 surface wires - flush mounting
T echnology: 2 wires / IP
VIDEO (VIDEO ENTRIES)
R esolution: 2 Mpx
Sensor: CMOS
Horizontal viewing angle: 169º
Diagonal viewing angle: 177º
Focal Length: 1.9mm
Night vision: Yes
Video Compression: H.265
Day / Night: ICR
Sensor Size: 1/2.5"
ENTRIES EXITS
Door sensor: 1
Exit push button: 1
Lock input: 1
Alarm output: 1
AUDIO (VIDEO DOORPHONE)
Audio input: 1
Audio output: Built-in speakers
Two-way audio: Yes
Audio compression: G.711u
NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR)
Network protocol: SIP / P2P / IPv4 / UPnP / SNMP / DNS / DDNS / RTSP / RTP / TCP / UDP
TCP/IP connection: 10M/100Mbps
ONVIF: Yes
SYSTEM (RECORDERS)
Processor: Embedded Processor
Operating system: Embedded LINUX
GENERAL CHARACTERISTICS (VIDEO ENTRY UNITS)
Anti-tamper: Yes
Led indicator: Yes, 3
OPENING
Call elements: Single button
MATERIAL AND DIMENSIONS
Dimensions: 130 x 96 x 28.5mm
Net weight: 350g
Weight with packaging: 400 g
Installation: Surface / Recessed
ATMOSPHERE
Operating Temperature: -30ºC~60ºC
Degree of protection: IP65
Anti-vandal: IK07
Use: Indoor / Outdoor
Max Humidity: 90%
FOOD AND CONSUMPTION
Power mode: DC
Voltage: 48V
Consumption (w): 12W
Amperage: 1000mA
Power PoE: Yes
PoE Type: PoE 802.3af
