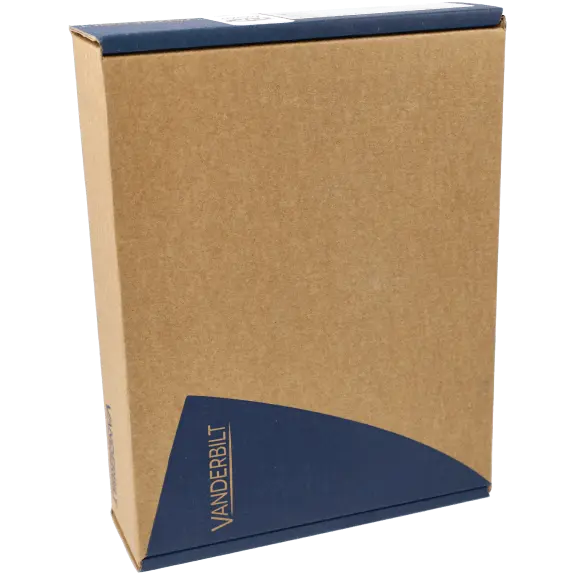

VANDERBILT 8-zone control unit / Reference SPC4320.320

Incident reports: 1000 Maximum number of doors (entrance - entrance / exit): 4 / 2 Maximum number of door groups: 2 Antipas back: Yes Guard: Yes Companion: Yes System arming functions: Yes Soft / hard: Yes Access control system: Optional, with the SPCA210.100 module

Web server: Built-in HTTPS with 256-bit TLS encryption Pluggable transmitters: 2 GSM / GPRS / 3G with SPCN110.000 module Communication protocols: Contact ID, SIA and SMS (RTB, GSM) Firmware update: Local and remote for motherboard, keyboards and language

Hardwired zones on plate: 8 Maximum number of hardwired zones: 32 Maximum number of outputs: 30 RFL settings: 4K7 / 4K7, default. Other configurations selectable type NC, NA and 1, 2 or 3 resistors Connections of the motherboard with the exterior: 1 x X-Bus data module / 2 x RS232 port / 1 x USB

IP: yes GPRS: yes

Maximum users: 100 Incident reports: 1000 with date and time

Class: 2

Wireless detectors: 32 Maximum number of remote controls: 32 Recommended maximum number of detectors per receiver: 20 Via Radio: Optional, with Vanderbilt module via radio

Anti sabotage box: Yes

Material: Steel Dimensions: 264 x 357 x 81mm Net weight: 6100g

Operating temperature: 0°C ~ +40°C

Power mode: AC Voltage: 230V Battery model: 12V 7Ah (not included) Power Consumption: Max. 160mA at 12V DC Quiescent Current: Max. 140mA at 12V DC Power supply output voltage: 13V ~ 14V Dc nominal (with AC and fully charged battery) Auxiliary current output: Max. 750mA at 12V DC

---

Our online store also offers surveillance cameras, IP cameras and complete video surveillance kits. Here again, our specialists have selected the most reputable brands for you, including: Hikvision, Dahua. In addition to these flagship products, TSA Distribution's offer also includes access control systems (video door entry system, connected lock). Our team specializing in domestic security is at your disposal from Monday to Friday on 09 52 60 07 67 (non-surcharged call). Do not hesitate to contact us for advice, information, navigation assistance on our site, for a quote or for order follow-up. In order to guarantee your satisfaction, TSA Distribution not only offers quality products at the most competitive prices on the market, but also technical assistance for installation that is totally free. Our team are at your disposal to help you configure your alarm, your surveillance cameras or your access control equipment.

---
