AJAX alarm kit / Reference HUBKIT-W-CAM

Compatibility: Ajax Panels LED indicators: Yes Anti -sabotage: Yes

Detection speed: 0.15 s

Sensor type: Wireless

Frequency: 868.0 MHz ~ 868.6 MHz Transmission distance: Up to 1200 m (without obstacles) Maximum RF power: Up to 20 mW

Class: 2 Standard: EN50131

Material: Plastic Dimensions: 90.5 x 21 x 18.5 mm Net weight: 30g Installation: Door / Window Color: White

Operating temperature: 0°С ~ 50°С Use: Indoor Max Humidity: 80%

Battery model: CR123A / 3V Battery life: Up to 7 years

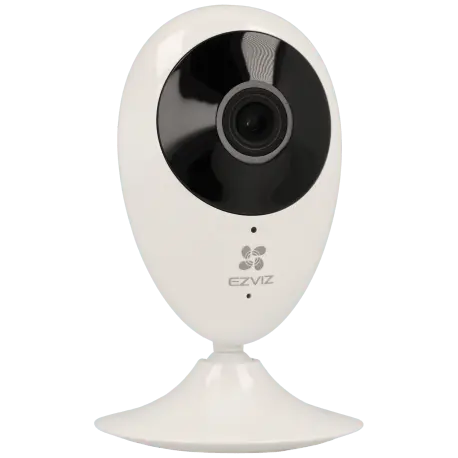

Video resolution: 3 Megapixels Video output: Wireless Day/night mode: Automatic 3D-NR: Yes WDR: DWDR Compression: H.264

Sensor: CMOS® Sensor size: 1/2.7"

Lens type: Fixed Focal length: 4mm Maximum diaphragm aperture: F/2.0 Viewing angle: 108º

Night vision distance: 10 m Wavelength: 850nm

Detect: 50m Observe: 19 m Recognize: 10m Identify: 5m

Built-in microphone: Yes Built-in speaker: Yes Noise filter: Yes

Pan/Tilt Range: Horizontal 355° / Vertical 110°

Wi-Fi: Yes ONVIF: Yes Portable devices: Android / IOS (Apple) RTSP: Yes

Motion detection: Yes Auto tracking: Yes

Wi-Fi standard: IEEE802.11 b / g / n Frequency band: 2.4 GHz Security: WEP / WPA / WPA2

Storage system: Micro SD / Cloud storage microSD card: Up to 128Gb

Movement: 2 Axes

Dimensions: 105 x 70 (Ø) mm Net weight: 165g Weight with packaging: 300 g

Operating Temperature: -20ºC ~ 50ºC Use: Interior Maximum humidity: 95%

Power supply mode: USB / DC Voltage: 5V Consumption (w): 5W Amperage: 1000mA PoE type: Not available

---
