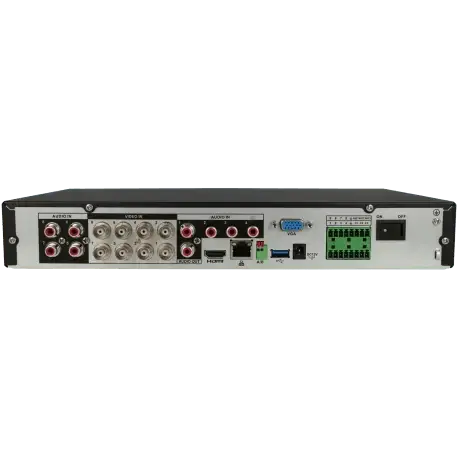

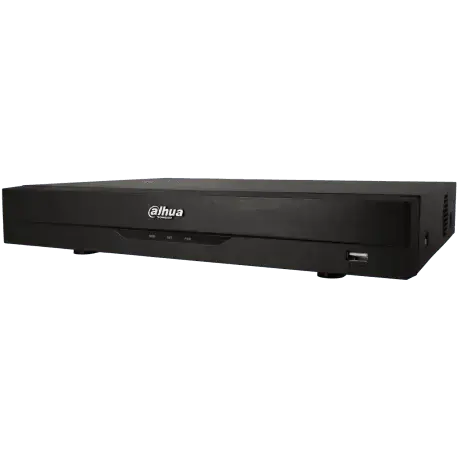

DAHUA 5-in-1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 8 channels and 2 mpx maximum resolution / Reference XVR5108HE-I3

BNC channels: 8 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted resolutions HDCVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions HDTVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 5Mpx / 4Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 8 BNC cameras + 4 IP cameras Resolution of IP cameras: 6 Megapixels IP channels: 12, replacing BNC channels

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 2 Megapixels (1080p) HDTVI recording resolution: 2 Megapixels (1080p) AHD recording resolution: 2 Megapixels (1080p) Frames per second Main Stream: 5M-N (1 ~ 10fps) / 4M-N / 1080P (1 ~ 15fps) / 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Extra Stream Frames Per Second: D1/CIF (1~15fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 2 MP

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p)

Audio inputs: 8 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Number of hard disks allowed: 1 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA

USB2.0: 2 RS485: 1 Alarm input: 8 Alarm output: 3

Backup Mode: USB Device / Red Synchronized playback: 1 / 4 / 9

Video detection type: Motion detection / Video signal loss / Local alarm

RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS

Processor: Integrated industrial-grade processor Operating system: Embedded LINUX

IoT: Yes POS: Yes Face detection: Yes SMD PLUS: Yes, 8 channels (human/vehicle classification) (only for analog cameras)

Number of channels with analysis: 2 channels / 10 IVS rules for each channel (only for analog cameras)

Number of channels with facial recognition: 1 video facial recognition channel (only for analog cameras)

Material: Metal Dimensions: 325 x 257 x 55mm Net weight: 1200g Weight with packaging: 1900 g Installation: Desktop / Rack Chassis: Mini 1U

Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 7W Amperage: 2000mA

---
