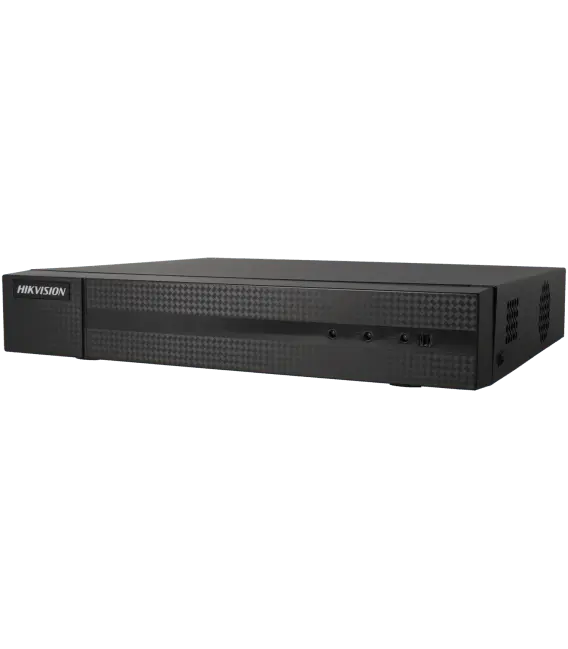

5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and IP) HIKVISION for 16 channels and 1 mpx maximum resolution / Reference HWD-5116MH-G4

BNC channels : 16 Video formats: HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 1080P / 720P Resolutions accepted HDTVI: 1080P / 720P Accepted resolutions AHD: 1080P / 720P CVBS cameras: Yes IP cameras accepted: 16 BNC cameras + 2 IP cameras Resolution of IP cameras: 5 Megapixels IP channels: 18, replacing BNC channels

Video compression: H.265 / H.264 / H.264+ HDCVI recording resolution: 1 Megapixels (720P) HDTVI recording resolution: 1 Megapixels (720p) AHD recording resolution: 1 Megapixel (720p) Frames per second Main stream: 720P / WD1 / 4CIF / VGA / CIF (15fps) Frames per second Extra Stream: CIF / QVGA (1 ~ 15fps) Video bit rate: 32 Kbps ~ 4 Mbps Audio compression: G.711u Audio bit rate: 64Kbps per channel Maximum recording resolution: 1 Mpx

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p) Similar video signals: HDMI and VGA

Audio inputs: 1 Audio outputs: 1

Admitted hard drive number: 1 Maximum hard disk size (unit): 10 TB HDD Type: 3.5" SATA

USB2.0: 2

Smart search: Yes Synchronized playback: 16

RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) Remote viewing: Web browser / Smartphone App and Hik-Connect Software. Software: IVMS App: Hik-Connect

Human/vehicle classification: Yes Motion detection: Yes, 2.0 on all analogue channels

Material: Metal Dimensions: 260 x 222 x 45 mm Net weight: 1100g Weight with packaging: 1430 g

Working Temperature: -10ºC~55ºC Use: Interior Maximum humidity: 90%

Power supply mode: DC Voltage: 12V Consumption (w): 10W Amperage: 1600mA

---

Our online store also offers surveillance cameras, IP cameras and complete video surveillance kits. Here again, our specialists have selected the most famous brands for you, including: Hikvision, Dahua. In addition to these flagship products, TSA Distribution's offering also includes access control systems (video door entry, connected lock). Our specialist home security team is available to assist you from Monday to Friday on 09 52 60 07 67 (non-premium rate call). Do not hesitate to contact us for advice, information, navigation assistance on our site, for a quote or for order follow-up. In order to guarantee your satisfaction, TSA Distribution not only offers quality products at the most competitive prices on the market, but also technical assistance with installation that is totally free. Our team are at your disposal to help you configure your alarm, your surveillance cameras or your access control equipment.

---
