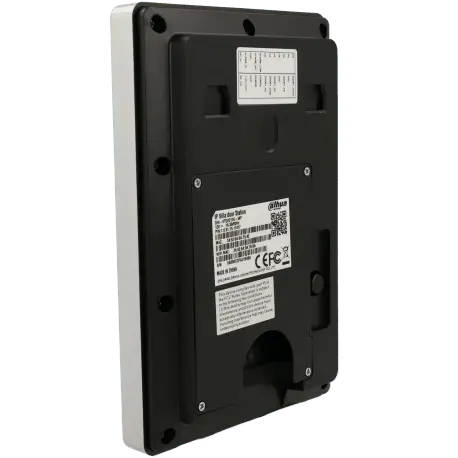

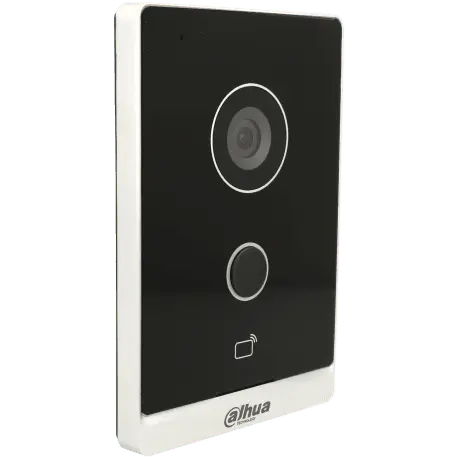

Surface DAHUA IP video door entry unit / Reference VTO2211G-WP

R esolution: 2 Mpx Sensor: CMOS Horizontal viewing angle: 125º Diagonal viewing angle: 142º Night vision: Yes Video Compression: H.264 Day / Night: ICR Sensor Size: 1/2.8"

RS485: 1 Door sensor: 1 Exit push button: 1 Alarm input: 1 Lock input: 1 Alarm output: 1

Audio input: 1 Audio output: Built-in speakers Two-way audio: Yes Audio compression: G.711MU / G.711U / PCM

Network protocol: SIP / IPv4 / RTSP / RTP / TCP / UDP TCP/IP connection: 10M/100Mbps WiFi: Yes Wi-Fi type: IEEE802.11 b / g / n ONVIF: Yes

Processor: Embedded Processor Operating system: Embedded LINUX

Anti-tamper: Yes

Call elements: Single button Proximity reader: MIFARE badges

Dimensions: 150 x 100 x 24.8mm Net weight: 490g Weight with packaging: 520 g Installation: Surface

Operating temperature: -30°C ~ 60°C Degree of protection: IP65 Use: Exterior (silicone sealant required) Max Humidity: 90%

Power mode: DC Voltage: 12V Amperage: 1000mA Power PoE: Yes PoE Type: PoE 802.3af Standby consumption: less than or equal to 1W Consumption on: less than or equal to 7W Dahua SIP Wifi video intercom for outdoors Slim and lightweight design. -30°C~+60°C working temperature Degree of protection IP65 (requires silicone gasket) IR illumination and night vision Unlock by card, unlock by APP and unlock from indoor monitors Two-way audio and voice call via app Capacity up to 10,000 cards Tamper alarm Supports standard PoE Control two locks Support wireless network via Wifi Integrated processor Embedded Linux operating system Operation by mechanical buttons H.264 video compression 1/2.8" CMOS image sensor, 2 megapixels low lighting Infrared illumination for night vision Infrared light compensation Day / Night with ICR filter Viewing Angle 125°(H), 72°(V), 142°(D) WDR 120dB 3D noise reduction Video sensor Stream 1: WVGA/720P/D1 (25/30fps) Stream 2: CIF/WVGA/QVGA/1080P/D1 (25/30fps) Audio compression G.711Mu, G.711u, PCM Two-way audio 1 audio input Incorporates a loudspeaker Echo cancellation and digital noise cancellation Auto Image Capture (can only be enabled on indoor monitors) Web Setup IC card reader Up to 10000 cards Card reading range: 3~5cm

---
