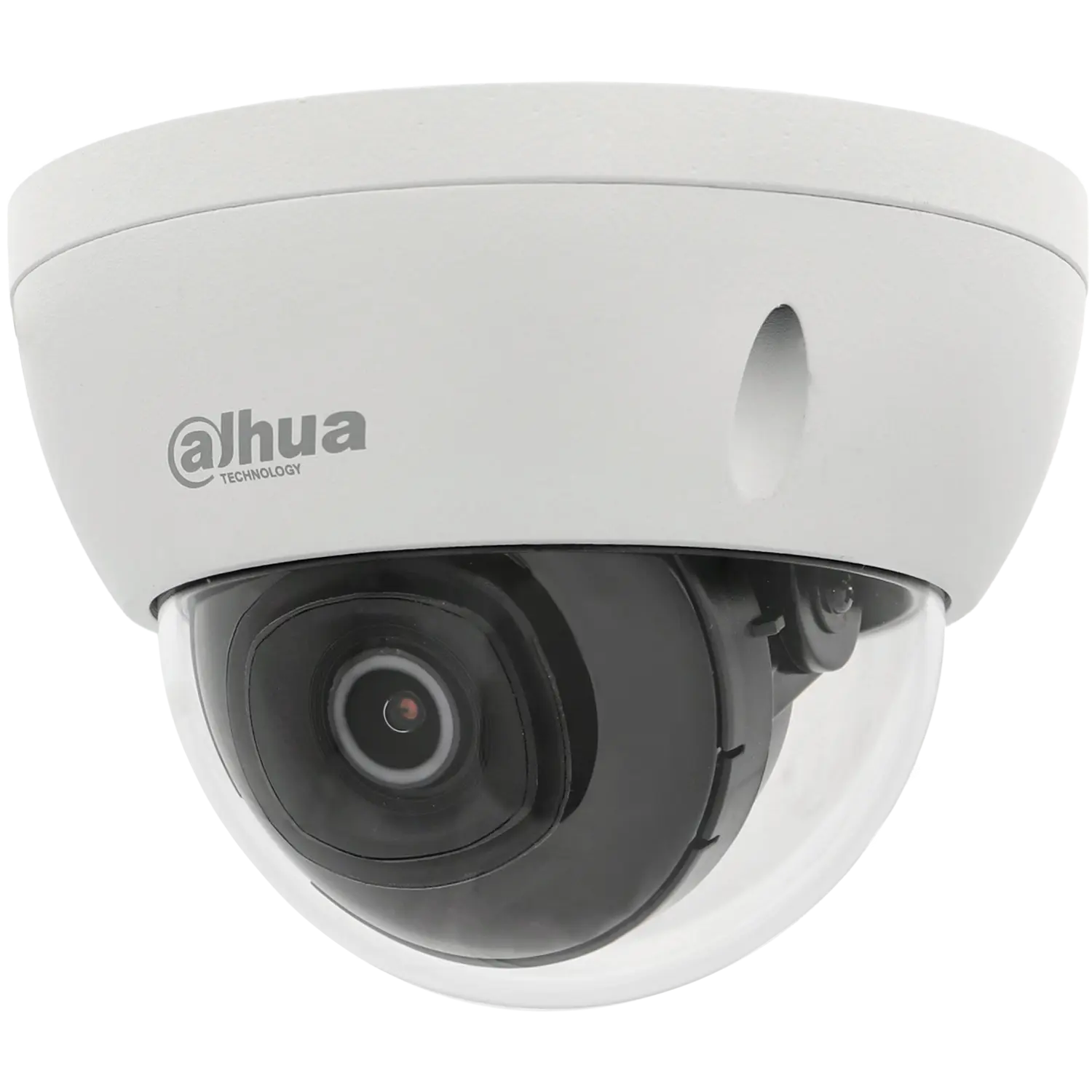

DAHUA IP mini-dome camera with 8 megapixels and fixed lens / Reference IPC-HDBW2841E-S

Video resolution: 8 Megapixels Frames per second: 20fps Video output: RJ45 Day / night mode: Color Privacy mask: Up to 4 zones BLC: Yes HLC: Yes 3D-NR: Yes AGC: Yes AWB: Yes WDR: WDR (120dB) Type of codec: CBR / VBR Bit rate: H.264: 32Kbps ~ 8192Kbps / H.265: 12Kbps ~ 8192Kbps Compression: H.265 / H.264 Main stream: 4K (1~20fps) / 4Mpx (1~25fps) Sub stream: 704 × 576 (25 fps) / 704 × 480 (30 fps) Water mark: Yes Mirror: On / Off

Sensor: CMOS® Sensor resolution: 3840 x 2160 Sensor size: 1/2.7" Electronic shutter speed: 1/3 ~ 1/100000s Minimum illumination: Color: 0.009Lux / B/W: 0.0009Lux S/N ratio: More than 56dB

Lens Type: Fixed Focal length: 2.8mm Maximum diaphragm aperture: F/2.0 Viewing angle: 106º Minimum focusing distance: 1300mm

Night vision distance: 30m Number of LEDs: 3 IR ON/Off: Automatic / Manual

Detect: 88m Observe: 35 m Recognize: 18m Identify: 9m

Built-in microphone: Yes Audio compression: G.711a / G.711Mu / PCM / G.726

IP connection: 1 RJ45 10M / 100M ONVIF: Yes, type S, G and T Maximum number of users: 20 users Web browser: Explorer, Chrome, Firefox Management software: Smart PSS, DSS, DMSS Mobile devices: Android / IOS (Apple) Network Disconnect: Yes IP Address Conflicts: Yes Cyber-security: Yes

Line crossing: Yes Intrusion: Yes Motion detection: Yes (4 zones) Audio detection: Yes Video Tamper: Yes Human / vehicle classification: Yes SMD PLUS: Yes

Storage system: NAS / FTP / SFTP / Micro SD card microSD card: Up to 256Gb Storage anomaly: Yes

RAM memory: 256 MB ROM memory: 128MB

Movement: 3 Axis

Material: Metal Dimensions: 81 x 110 (Ø) mm Net weight: 340g Weight with packaging: 490 g

Working Temperature: -40ºC~60ºC Degree of protection: IP67 Anti-vandal: IK10 Use: Indoor / Outdoor Max Humidity: 95%

Power mode: DC Voltage: 12V Consumption (w): 5.4W Amperage: 450mA Power PoE: Yes PoE Type: PoE 802.3af

---
