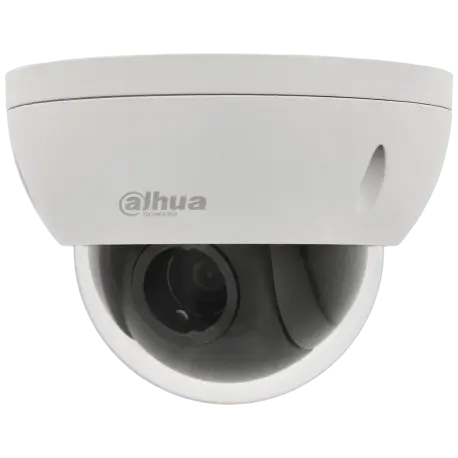

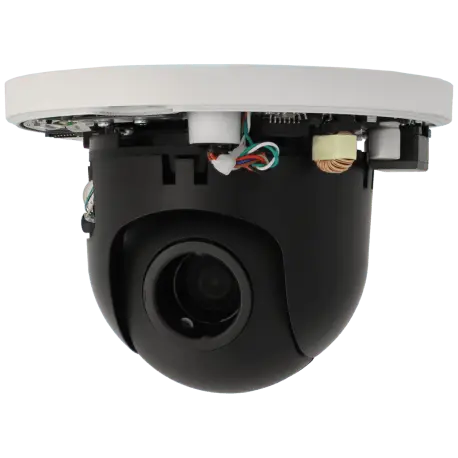

DAHUA PTZ IP camera with 4 megapixels and optical zoom lens / Reference SD22404DB-GNY

Video resolution: 4 Megapixels Frames per second: 25fps Video output: RJ45 Day / night mode: Color Digital zoom: 16x Fog system: Yes BLC: Yes HLC: Yes 3D-NR: Yes AGC: Yes AWB: Yes WDR: DWDR Type of codec: CBR / VBR Bit Rate: H.264: 2816Kbps ~ 13056Kbps / H.265: 1024Kbps ~ 7936Kbps Compression: H.265 / H.264 EIS: Yes Main stream: 4Mpx / 3Mpx / 1080P / 1.3Mpx / 720P (1 ~ 25fps) Sub stream: D1 / VGA / CIF (1~25fps) Substream 2: 720P (1~25/30fps)

Sensor: Starvis Cmos® Sensor resolution: 2560 x 1440 Sensor size: 1/2.8" Electronic shutter speed: 1/1s ~ 1/30,000s Minimum illumination: Color: 0.005Lux / B/W: 0.0005Lux S/N ratio: More than 55dB

Lens Type: Optical Zoom Focal length: 2.8mm ~ 12mm Maximum diaphragm aperture: F1.6 ~ F3.0 Viewing Angle: 90.3°~29.4° Minimum focusing distance: 1500mm Autofocus: Yes Optical zoom: 4x PFA (Focused Zoom): Yes

Night vision distance: Yes Starlight: Yes

Detect (lens open): 65m Detect (lens closed): 200m Observe (Objective open): 26 m Observe (Objective closed): 79 m Recognize (open objective): 13 m Recon (Objective Closed): 40m Identify( Open lens ): 7 m Identify (Objective closed): 20 m

Pan/Tilt Range: Horizontal 355°; Vertical 90° Manual speed control: Horizontal 0.1°/s ~ 100°/s / Vertical 0.1°/s ~ 60°/s Speed ​​between presets: Horizontal 100º/s / Vertical 60º/s Memories: 300 PTZ Mode: 8 Tours between established points, 5 tours Protocol: SD Pelco-P/D Idle Mode: Pattern / Preset / Tour

IP connection: 1 RJ45 10M / 100M ONVIF: Yes, type S, G and T Transmission method: Unicast / Multicast Maximum number of users: 20 users Web browser: Explorer, Chrome, Firefox, Safari Management software: DSS, DMSS Mobile devices: Android / IOS (Apple) Network Disconnect: Yes IP Address Conflicts: Yes

Line crossing: Yes Intrusion: Yes Face detection: Yes Motion detection: Yes Abandoned object: Yes Lost item: Yes Video Tamper: Yes Prowler detection: Yes Human / vehicle classification: Yes Parking detection: Yes SMD 3.0: Yes

Storage system: NAS / FTP / Micro SD card microSD card: up to 512Gb Storage anomaly: Yes

RAM memory: 512 MB ROM memory: 128MB

Movement: 3 Axis

Material: Metal Dimensions: 89 x 122 (Ø) mm Net weight: 500g Weight with packaging: 700 g

Operating Temperature: -30ºC~60ºC Degree of protection: IP66 Anti-vandal: IK10 Use: Indoor / Outdoor Max Humidity: 95% Protection against rays: 6KV

Power mode: DC Voltage: 12V Consumption (w): 6.1W Amperage: 1000mA Power PoE: Yes PoE Type: PoE 802.3af

---
