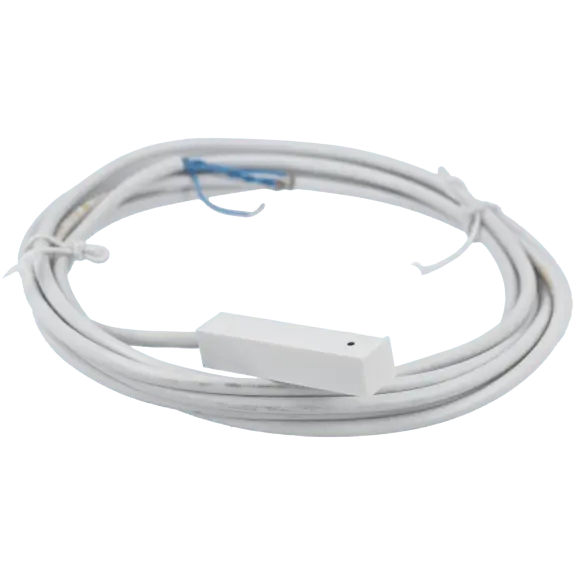

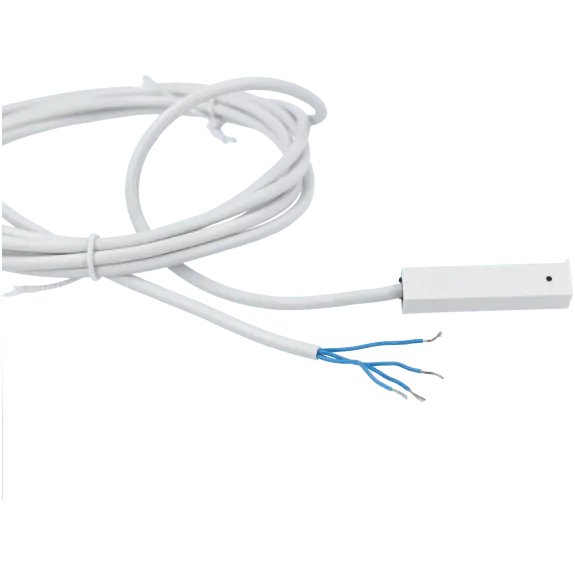

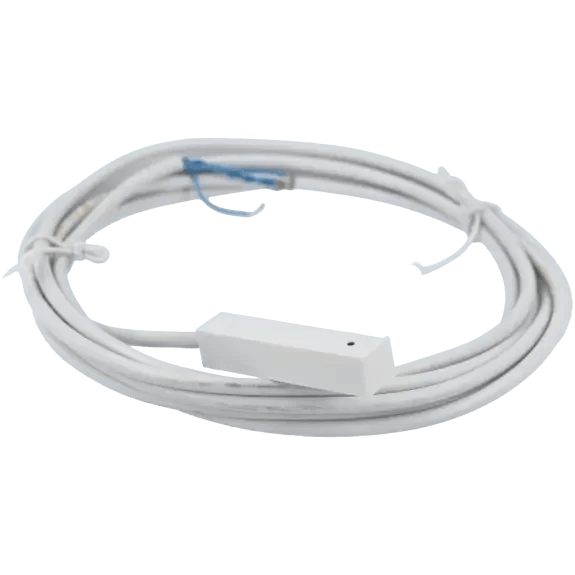

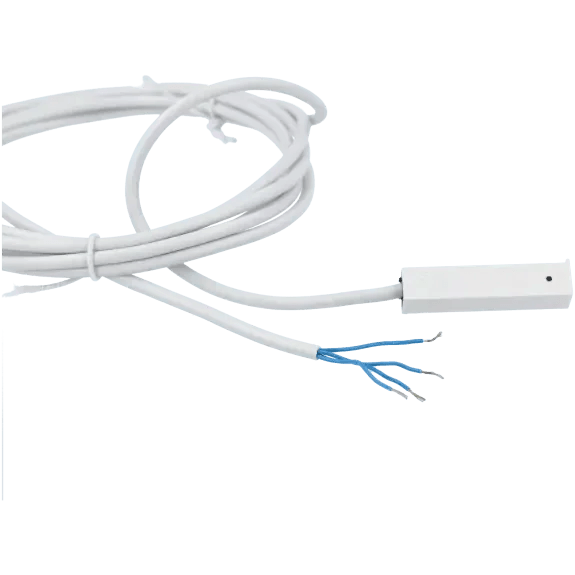

ARITECH magnetic detector / Reference DC148

Detector type: Wired Anti sabotage: Yes EOL resistors (end of line): Yes

Operating distance (for non-ferric materials): 15mm ~ 23mm Operating distance (for ferric materials): 8mm ~ 16mm

Class: 3 Standard: EN50131 Ambient conditions level: III

Installation: Surface Cable dimensions: 2000 mm Magnet dimensions: 8 x 8 x 40 mm Contact dimensions: 54 x 13 x 12.5 mm

Operating temperature: -25°C ~ +70°C Degree of protection: IP67

Power mode: DC Voltage: 100V EN50131-2.6 Degree 3 and VDS certifications 2 meters of cable Sabotage protection Metallic and non-metallic ports Interchangeable box Contact type: NC contact Switching distance non-metallic doors 17 mm, +/- 3 mm - metal doors 12 mm, +/- 3 mm Max. switching voltage: 100 VDC Max switching current:500mA Max contact resistance:0.15 Ohm Breakdown voltage > 250 V Max Max Voltage:40V Connection cable: LSA IDC termination method External Cable Color: White Inner conductor: Blue Dimensions of the contact Ø:8 x 8 x 40 Cable dimensions Ø:3.2 mm x 2 m Magnet Ø:6 x 30 mm neodymium axially polarized in plastic casing Ø 8 x 40 mm with installation EF 8/20 Box dimensions: 54 x 13 x 12.5 mm Housing material: SB or ABS White colour Temperature range - 25°C to + 70°C Protection: Vds - Environmental class III, IP 67 Certifications: EN 50131-2-6 Degree 3, Class Vds, SBSC

---
