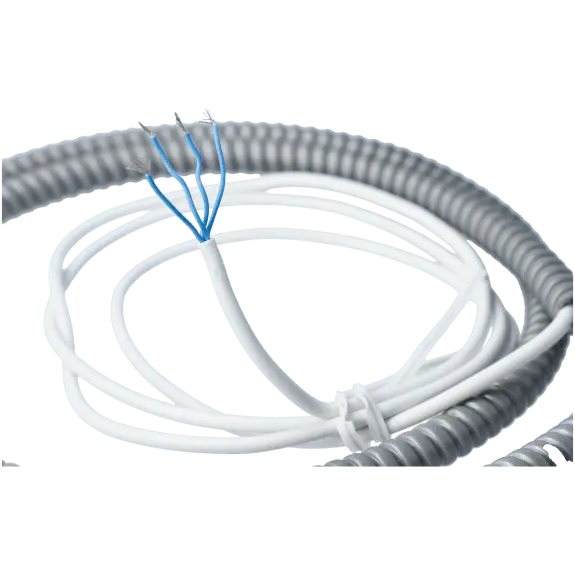

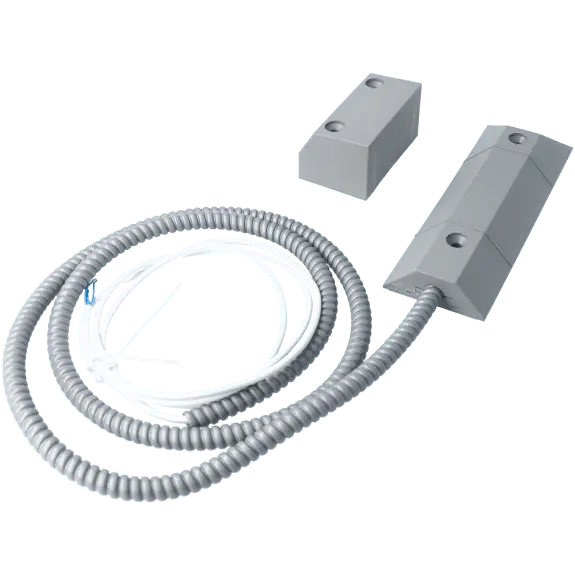

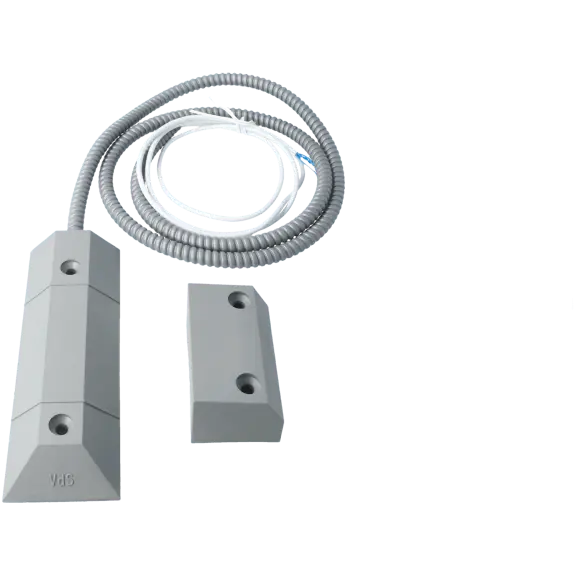

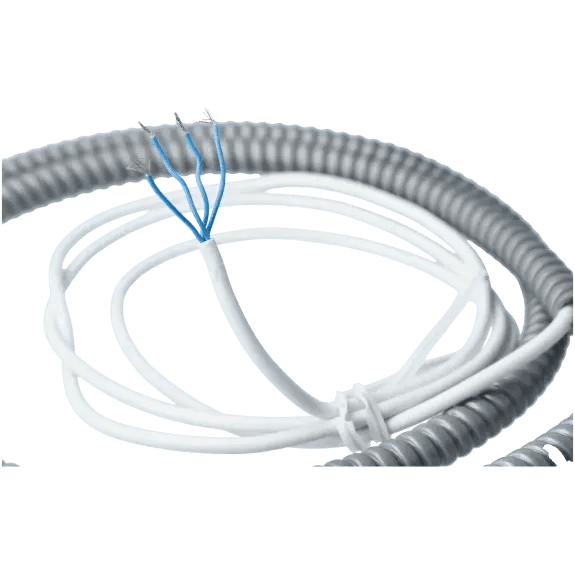

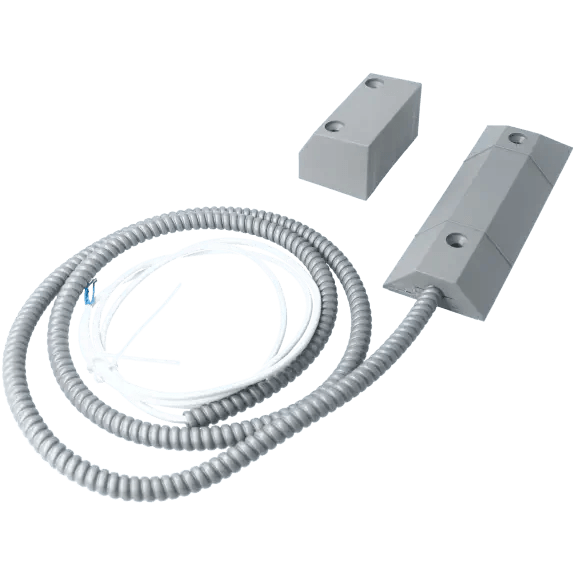

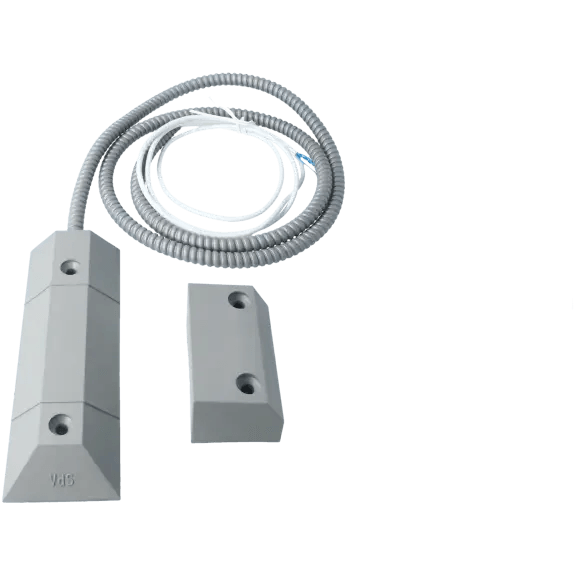

ARITECH magnetic detector / Reference DC408

Detector type: Wired Anti-sabotage: Yes Connection type: 4 Wires

Detection distance: 5mm ~ 34mm

Class: 3 Standard: EN50131 Ambient condition level: III

Cable dimensions: 1000 mm, Ø 6 x 9 mm galvanized steel Magnet dimensions: 66 x 40 x 35 mm Contact dimensions: 144 x 50 x 16.5 mm

Operating temperature: -25°C ~ +70°C Degree of protection: IP67 EN50131-2.6 Degree 3 and VDS certificates 2 meters of cable Sabotage protection Non-metallic doors Contact type: NC Switching distance: 34 mm, +/- 5 mm - Switching voltage: max. 100VDC Switching current: max. 500mA Contact resistance: max. 0.15 Ohms Breakdown voltage > 250 V Maximum voltage: max. 40V Connection Cable: LSA IDC Termination Method External cable Color: White Inner conductor: Blue Contact dimensions: 144 x 50 x 16.5 mm Cable dimensions Ø:3.2 mm x 2 m Metal tube: 1m, Ø 6 x 9 mm galvanized steel Magnet Ø:12 x 55 mm AlNiCo axial polarization in plastic box Ø 8 x 40 mm with EF 8/20 installation Dimensions: 66 x 40 x 35 mm Housing material: Polyamide GF Grey color Temperature range: - 25°C to + 70°C Protection: Vds - Environmental class III, IP 67 Certifications: EN 50131-2-6 Degree 3, Class Vds, SBSC

---
