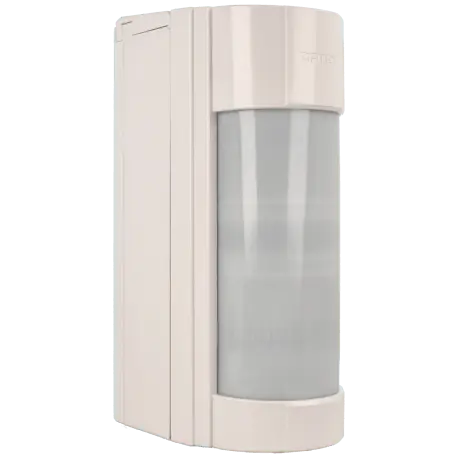

Wired volumetric detector OPTEX / Reference VXI-AM

Wired volumetric detector OPTEX

Specifications and characteristics: OPTEX wired volumetric detector

Detection technology : Volumetric DETECTION Detection distance : 12 m Detection angle: 90º PIR coverage: 2.5m~12m Mounting height: 0.8m ~ 1.2m Detection speed: 0.3m/s~1.5m/s Detection fields: 16 Anti-masking: Yes Alarm time: 2.0 ± 1s TECHNICAL CHARACTERISTICS Detector Type: Wired LED indicators: Yes Boot time: 60s SENSOR Sensor type: PIR Sensitivity adjustment: DIP switch RF interference: No alarm 10 V/m MATERIAL AND DIMENSIONS Dimensions: 71.3 x 185 x 105mm Net weight: 370g Weight with packaging: 510 g ATMOSPHERE Operating Temperature: -30ºC~60ºC Degree of protection: IP55 Use: Outdoor Max Humidity: 95% FOOD AND CONSUMPTION Power mode: DC Voltage: 9.5V~18V Amperage: 24mA

---
