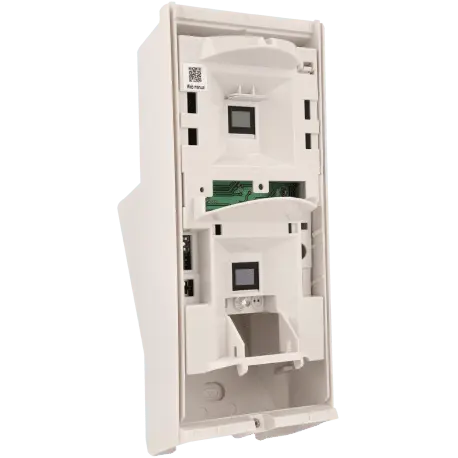

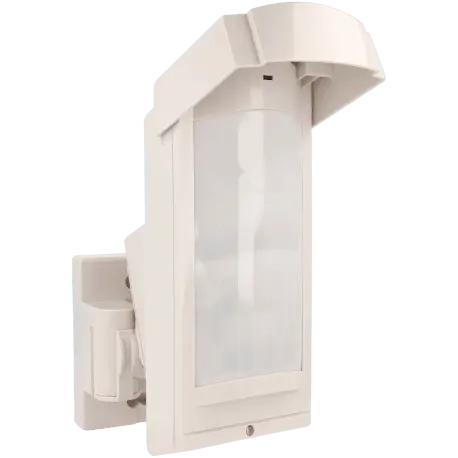

OPTEX wired volumetric detector / Reference HX-40

Detection distance: 12 m Detection angle: 85º PIR coverage: 4m ~ 12m Mounting height: 2.5 m ~ 3.0 m Detection speed: 0.3 m/s ~ 1.5 m/s Detection fields: 94 Pet immunity: Yes Alarm time: 2.0 ± 1 s

Detector type: Wired LED indicators: 1 LED colors: Red Anti sabotage: Yes Start-up time: 60 s

Sensor type: PIR Sensitivity adjustment: Change DIP PIR Sensitivity: Selectable LO / MID / HI RF interference: No alarm 10 V / m

Dimensions: 205 x 99 x 266 mm Net weight: 520g Weight with packaging: 850 g Installation: Wall Adjustable: Yes, 180° horizontally and 40° vertically.

Operating temperature: -20°C ~ +60°C Degree of protection: IP55 Use: Outdoor Maximum humidity: 95%

Power supply mode: DC Voltage: 9.5V ~ 18V

---
