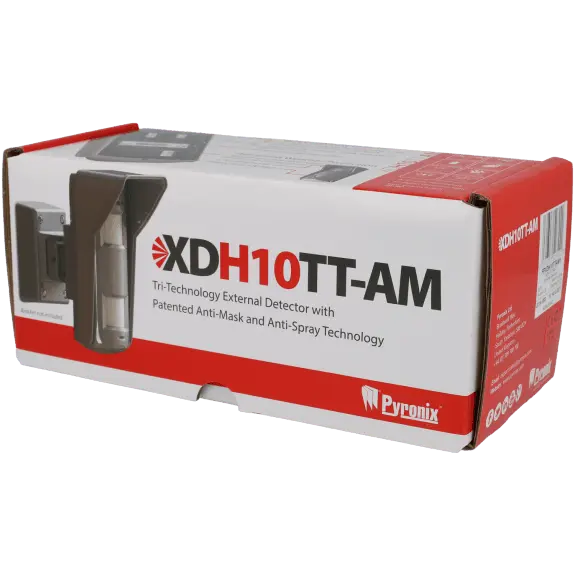

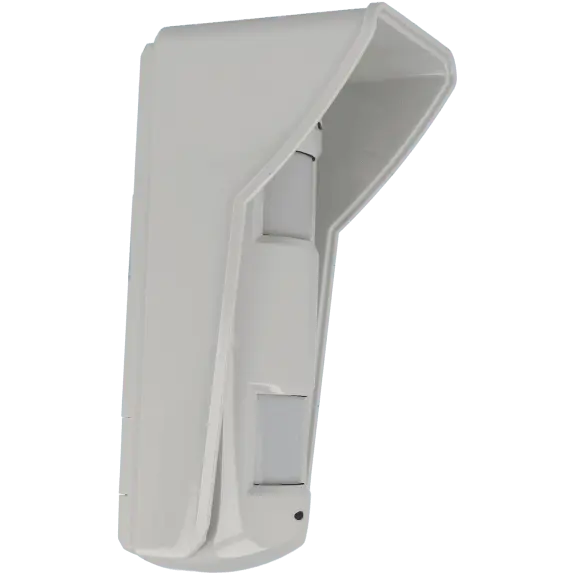

PYRONIX triple technology volumetric detector / Reference XDH10TT-AM

Detection distance : 10 m Detection angle: 90º Detection method: Infrared and microwave Mounting height: 2.4 m Detection speed: 0.25 m/s - 3 m/s Detection fields: 78 (24 with curtain lens) Pet immunity: Up to 10 kg Anti-masking: Yes Adjustable anti-masking: Yes

Detector Type: Wired LED indicators: Yes Anti sabotage: Yes EOL (end of line) resistors: Yes Test buzzer: Yes

Sensor type: PIR and microwave Double PIR sensor: Yes Microwave: 9.87 GHz / 9.90 GHz / 9.91 GHz Digital temperature compensation: Yes

Class: 3 Standard: EN50131 Ambient conditions level: IV

Dimensions: 118 x 77 x 84 mm Net weight: 300g Installation: Wall

Operating temperature: -30ºC ~ +40ºC Degree of protection: IP55 Use: Interior / Exterior

Power supply mode: DC Voltage: 9V~16V Alarm consumption: 30mA Consumption at rest: 23mA

---
