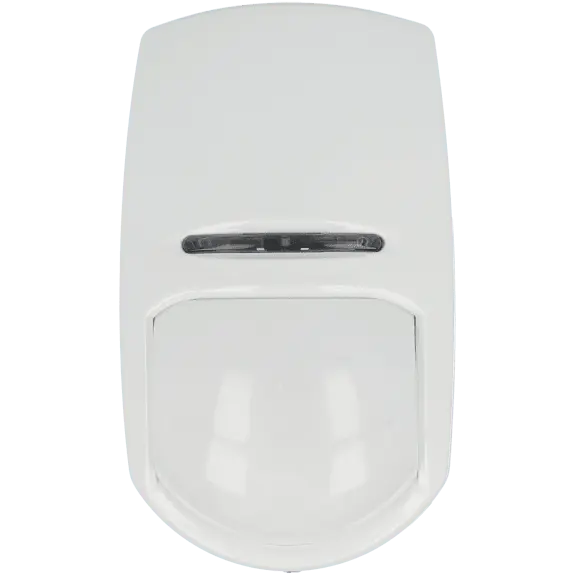

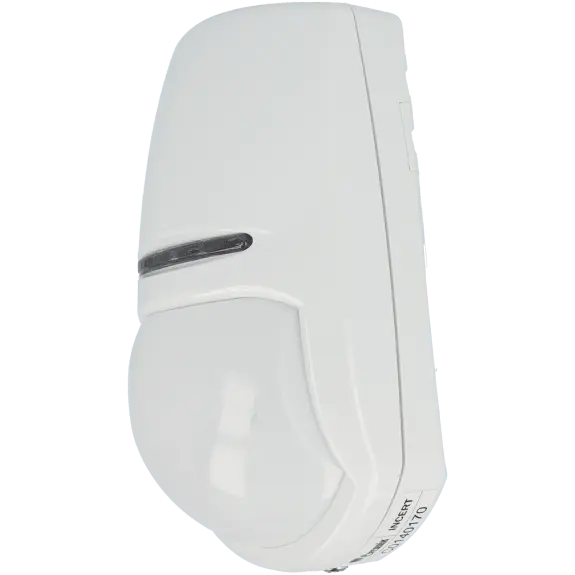

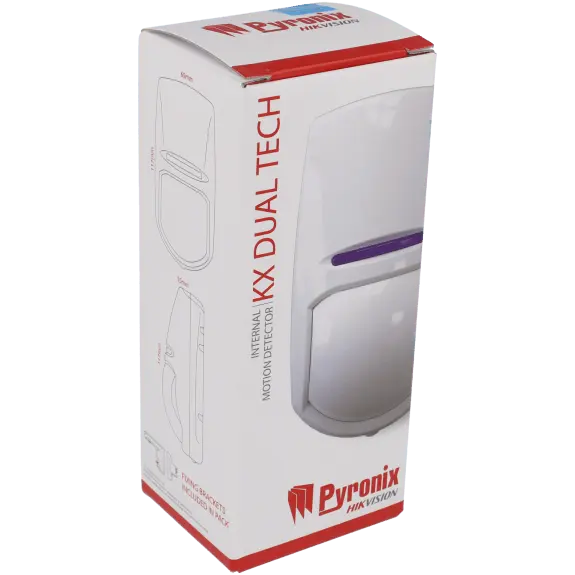

PYRONIX double volumetric detector / Reference KX10DTP

Detector Type: Wired Anti sabotage: Yes EOL (end of line) resistors: Yes

Detection distance: 10m Detection angle: 85º Detection method: Infrared and microwaves Mounting height: 1.8m ~ 2.4m Pet immunity: Up to 24 kg Anti-masking: Yes Blue Wave technology (infrared noise enhancement): Yes Anti-cloaking technology (alarm activation after infrared AND/OR microwave detection): Yes PIR advanced detection at ground level (PIR Creep): Yes IFT Technology: Yes

Sensor Type: Pyroelectric Double PIR sensor: Yes Sensitivity adjustment: Yes

Class: 2 Standard: EN50131 Ambient conditions level: II

Interchangeable optics: Yes

Material: ABS plastic Dimensions: 117 x 69 x 55mm Installation: Wall / Ceiling

Operating temperature: -30ºC ~ +55ºC Use: Indoor

Power mode: DC Voltage: 9V~16V Dual technology The dual technology improves the reliability of the detectors while for an alarm condition to exist, the PIR technology and the microwave must activate simultaneously, which increases stability in undesirable environments. Pet Immunity Intelligent detectors with PI (Pet Immune) technology analyze the difference between an intruder and a signal from animals, with immunity of up to 25Kg and a coverage range of 10m. Blue Wave Technology Protects against false alarms and improves immunity to interference with advanced signal processing and 3D optics. Digital temperature compensation Digital Temperature Compensation digitally adjusts sensor sensitivity to maintain its specific detection range when environmental temperature is close to body temperature. Anti-camouflage technology AND/OR anti-cloaking technology prioritizes the microwave sensor maintaining performance in certain circumstances where an intruder may have infrared cloaking clothing. Independent variable thresholds IFT (Independent Variable Thresholds) technology ensures that alarm thresholds always stay within pre-set limits, eliminating environmental disturbances. Auto Sensitivity The detector is able to automatically adapt to changing environmental conditions and guarantees stability and maintains intruder detection performance. Dual RFL Dual end-of-line resistors reduce installation time. The range of values ​​encompasses most systems. Different microwave frequencies Avoid interference that can occur when detectors with microwave modules are installed close to each other. This optimizes the stability of the detector. Features Dual Technology Pyronix Detector 15m coverage, 85° 74 detection beams and 7 planes Sealed optics Animal immunity up to 25Kg (installed at 2.4m) Installation height of 1.8~2.4m 0.3~3ms detection speed White light filter (6500 lux) UV filter Selectable sensitivity (automatic, high) Separate indication of microwave, PIR and alarm Triple microwave frequency to avoid interference: 10.515/10.525/10.535 GHz Relay output: 60V DC, 50mA, 42.4V AC (RMS) Blue Wave technology reduces false alarms Digital temperature compensation Has selectable EOL resistors Protection against manipulation RFI(25V/m) continuous wave, modulated wave and pulse immunity at 80~2700 MHz Power supply: 9V~16V DC Consumption: 23 mA in rest, 30 mA in alarm Operating temperature: -30°C ~ +50°C Dimensions: 117 x 69 x 50mm Weight: 125g without stand Includes wall and ceiling brackets Warranty: 5 years Environmental class II EN50131 Degree 2 Certificate

---
