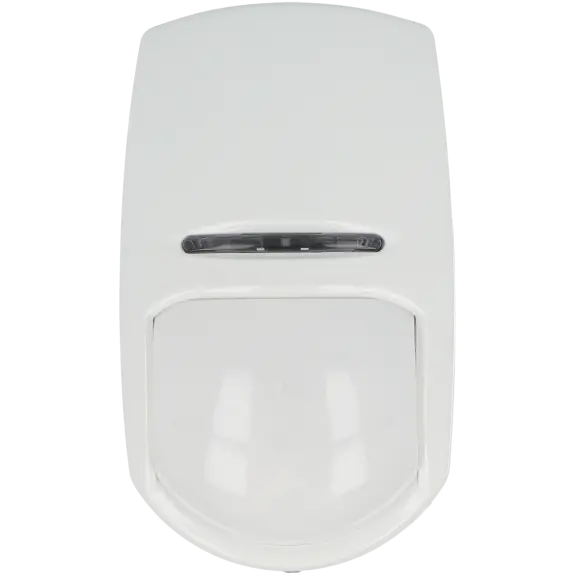

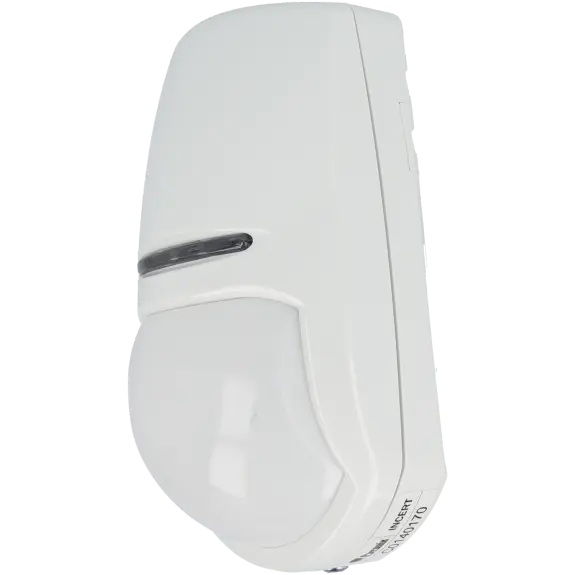

Wired volumetric detector PYRONIX / Reference KX15DQ

Detector Type: Wired Compatibility: Wired control units Contact resistance: less than 10 ohms Anti-tamper: Yes EOL (end of line) resistors: Yes

Detection distance: 15 m Detection angle: 85º Detection method: infrared Mounting height: 1.8m ~ 2.4m Detection Speed: 0.3m/s~3m/s Detection fields: 60 Blue Wave technology (infrared noise enhancement): Yes

Sensor Type: Pyroelectric Sensitivity adjustment: Yes High Sensitivity: Yes Low Sensitivity: Yes Digital temperature compensation: Yes

Class: 2 Standard: EN50131 Ambient conditions level: II

Lens Type: Ultraviolet Light Filter

Material: ABS plastic Dimensions: 117 x 69 x 50mm Net weight: 125g Installation: Wall / Ceiling

Operating temperature: -40°C ~ +80°C

Power mode: DC Voltage: 9V~16V Relay output type: DC Relay output voltage: 60V Relay output amperage: 50mA

---
