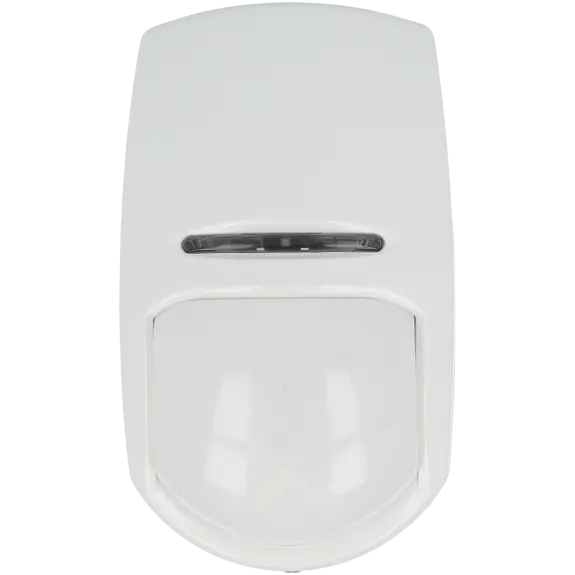

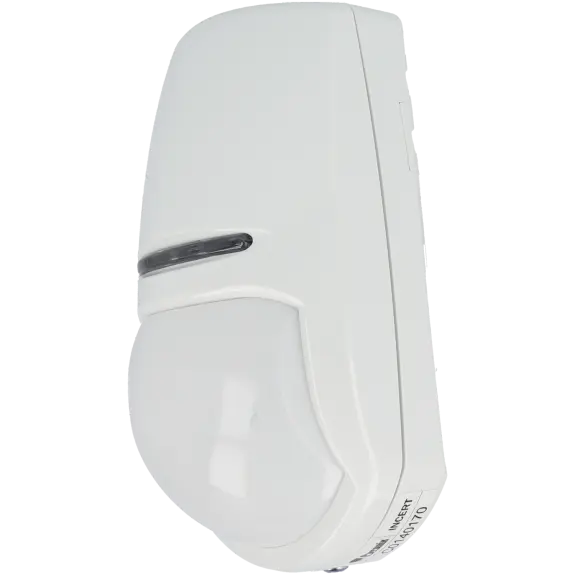

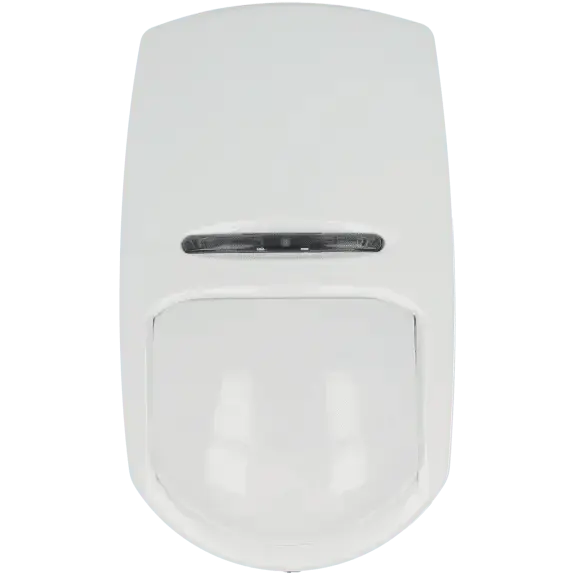

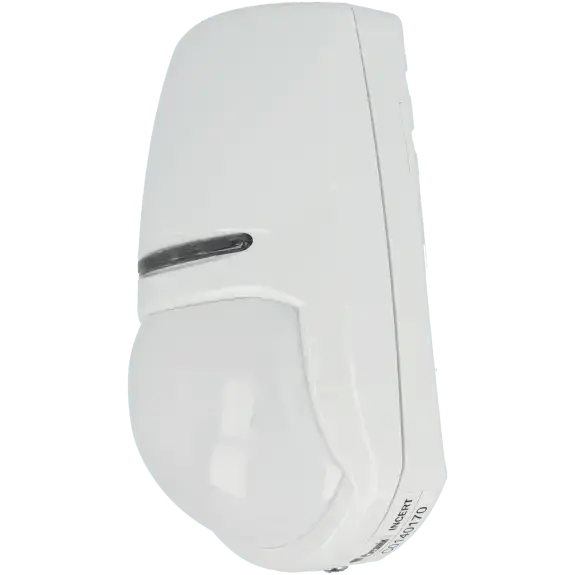

Wired volumetric detector PYRONIX / Reference KX10DP

Detector Type: Wired Compatibility: Wired control units Contact resistance: less than 10 ohms Anti-tamper: Yes EOL (end of line) resistors: Yes

Detection distance: 10m Detection angle: 85º Detection method: infrared Mounting height: 1.8m ~ 2.4m Detection Speed: 0.3m/s~3m/s Detection fields: 52 Pet immunity: Up to 24 kg Blue Wave technology (infrared noise enhancement): Yes IFT Technology: Yes

Sensor type: PIR Sensitivity adjustment: Yes Low Sensitivity: Yes Digital temperature compensation: Yes

Class: 2 Standard: EN50131 Ambient conditions level: II

Material: ABS plastic Dimensions: 117 x 69 x 50mm Net weight: 125g

Operating temperature: -40°C ~ +80°C Use: Indoor

Power mode: DC Voltage: 9V~16V Relay output type: DC Relay output voltage: 60V Relay output amperage: 50mA

---
