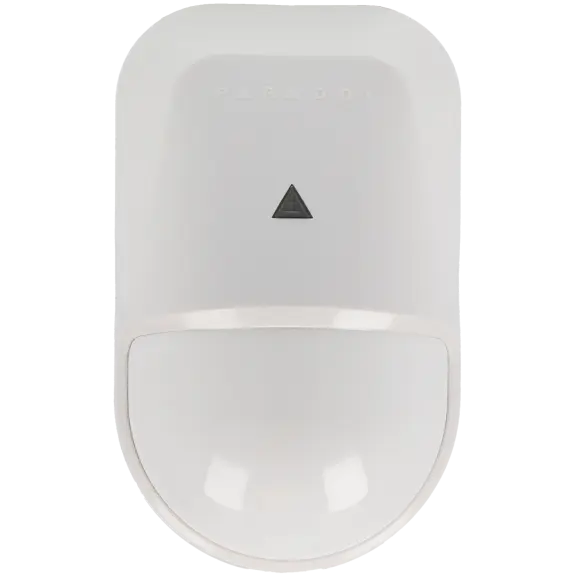

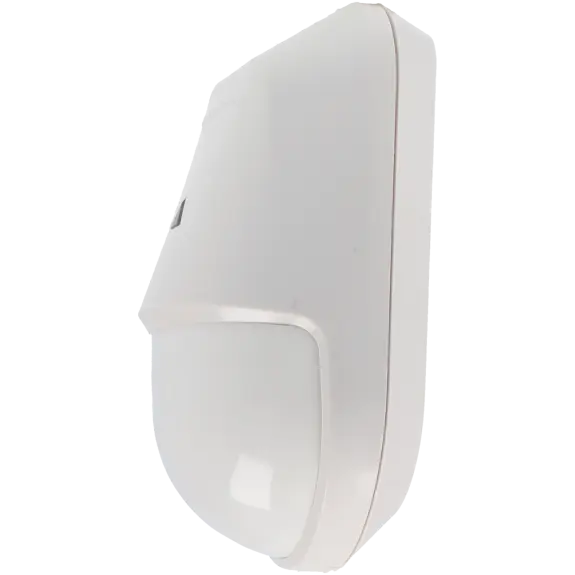

PARADOX wired volumetric detector / Reference NV5

Detector Type: Wired Compatibility: Paradox Panels LED indicators: Yes LED colors: Red Anti-tamper: Yes Boot time: 10s

Detection distance: 10m Detection angle: 90º Detection method: infrared Mounting height: 2.1m ~ 3.1m Detection speed: 0.2m/s~3m/s Pet immunity: Up to 16 kg RF Immunity: 10V/m 80MHz~2GHz Automatic digital pulse processes (APSP): Yes

Sensor Type: Dual Immunity between electromagnetic frequencies (EMI): Yes Sensitivity adjustment: Yes High Sensitivity: Yes Sensor Geometry: Rectangular

Class: 2 Standard: EN50131 Ambient conditions level: I

Lens Type: Second Generation Fresnel Interchangeable optics: Yes

Material: ABS plastic Dimensions: 91 x 55 x 40mm Installation: Wall / Ceiling

Operating temperature: -10°C ~ +50°C Use: Indoor

Power mode: DC Voltage: 10V~15V Alarm consumption: 11.3mA Standby consumption: 10.5mA Dual Element Digital Infrared Detector Range: 10x10 meters (at 2.4 meters high)

---
