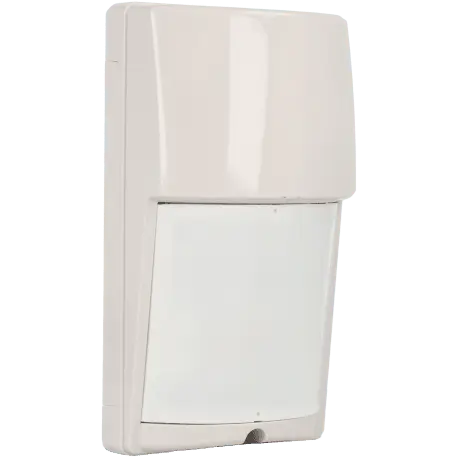

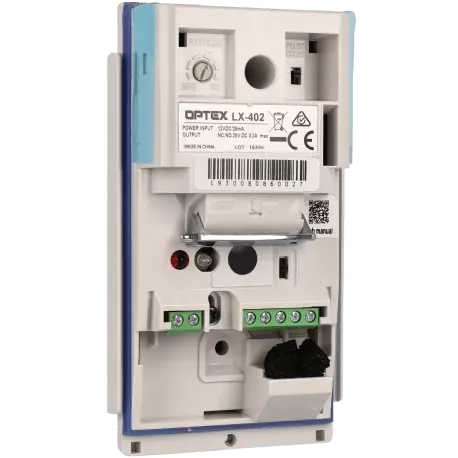

OPTEX wired volumetric detector / Reference LX-402

Detection distance: 12 m Coverage: 12 mx 15 m Mounting height: 2.5 m (multi-level) / 1.2 m ~ 1.5 m Detection speed: 0.3 m/s ~ 1 m/s Detection fields: 40 (multi-level) / 18 Pet immunity: Yes Alarm time: 2.0 s ± 0.1 s Day/night mode: Adjustable (10 ~ 100000 lux)

Detector type: Wired LED indicators: 1 LED colors: Red Anti-sabotage: Yes Start-up time: 60 s

Sensor type: PIR Sensitivity adjustment: Yes PIR Sensitivity: Selectable LO / MID / HI

Dimensions: 74.8 x 141 x 53.5 mm Net weight: 170g Weight with packaging: 220 g Installation: Wall

Operating temperature: -20°C ~ +50°C Degree of protection: IP54 Use: Interior / Exterior Maximum humidity: 95%

Power supply mode: DC Voltage: 10.8V ~ 13.2V Amperage: 25mA

---
