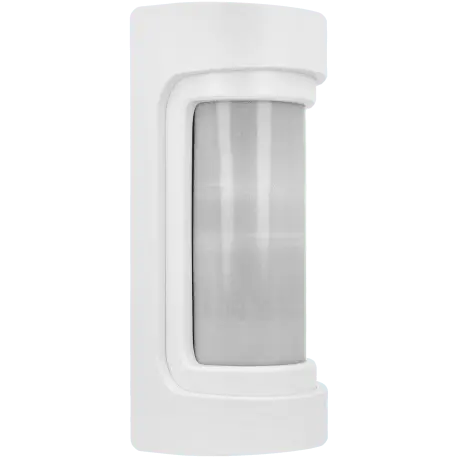

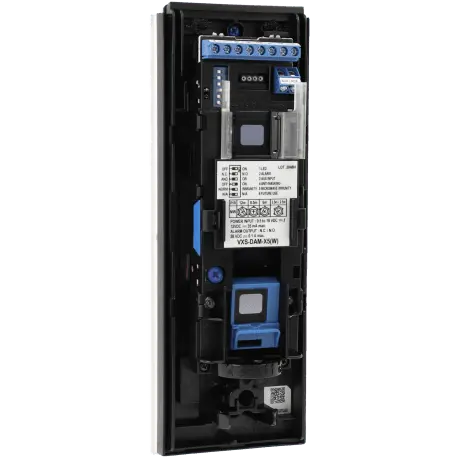

OPTEX wired volumetric detector / Reference VXS-DAM-X5

Detection distance: 12 m Detection angle: 90º PIR coverage: 2.5 m ~ 12 m Mounting height: 0.8 m ~ 1.2 m Detection speed: 0.3 m/s ~ 2 m/s Detection fields: 16 Anti-masking: Yes Alarm time: 2.0 s ± 0.1 s

Detector type: Wired LED indicators: Yes LED colors: Red / Yellow Anti sabotage: Yes Start-up time: 60 s

Sensor type: PIR and microwave Sensitivity adjustment: Change DIP PIR Sensitivity: Selectable LO / MID / HI

Dimensions: 81.6 x 199.3 x 70.3 mm Net weight: 390g Weight with packaging: 530 g Installation: Wall / Post

Operating temperature: -20ºC ~ +45ºC Degree of protection: IP55 Use: Interior / Exterior Max Humidity: 95%

Power supply mode: DC Voltage: 9.5V~18V

---
