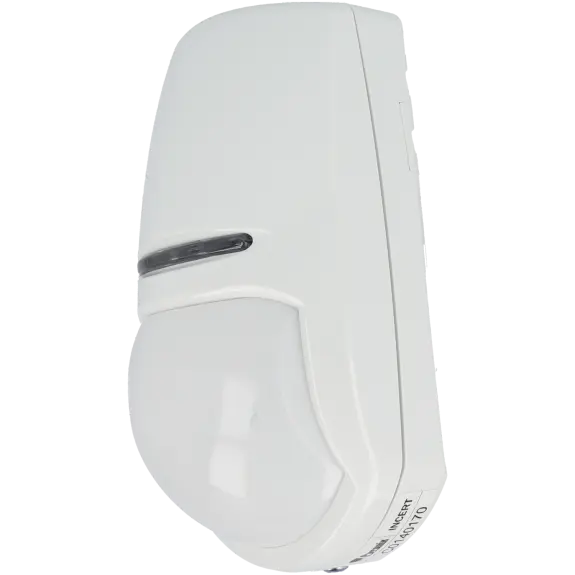

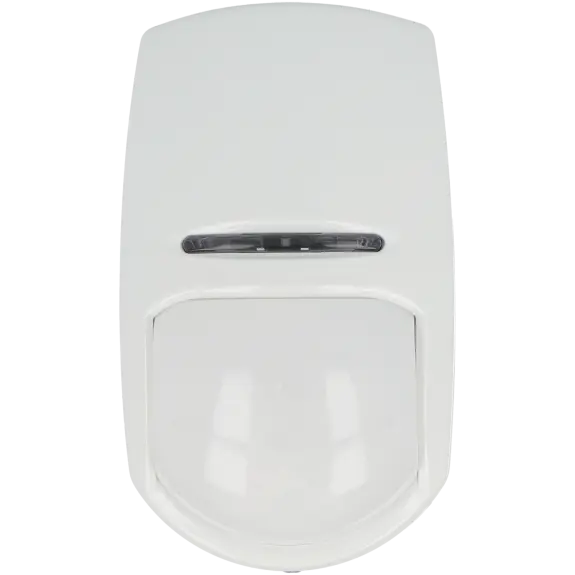

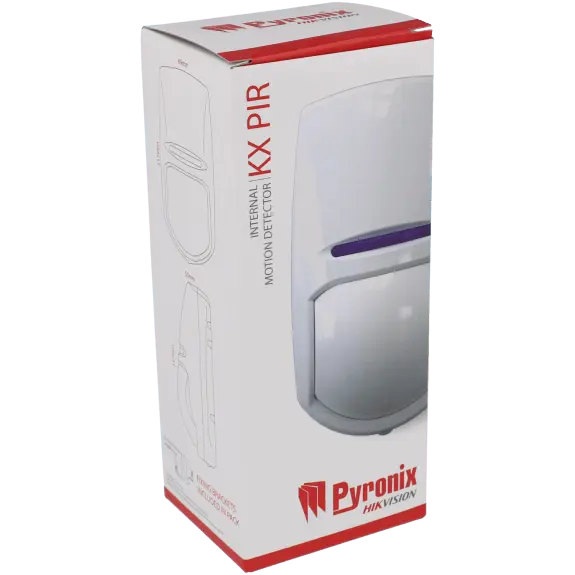

PYRONIX wired volumetric detector / Reference KX18DC

Detector Type: Wired Anti-tamper: Yes EOL (end of line) resistors: Yes

Detection distance: 18m~30m Detection method: infrared PIR coverage: Yes Mounting height: 1.8m ~ 2.4m Pet Immunity: Yes PIR advanced detection at ground level (PIR Creep): Yes

Sensor Type: Pyroelectric Double PIR sensor: Yes Curtain sensor: Yes

Class: 2 Standard: EN50131 Ambient conditions level: II

Interchangeable optics: Yes

Material: ABS plastic Dimensions: 117 x 69 x 50mm

Operating temperature: -30°C ~ +50°C Use: Indoor

Power mode: DC Voltage: 9V~16V Blue Wave Technology Protects against false alarms and improves immunity to interference with advanced signal processing and 3D optics. Digital temperature compensation Digital Temperature Compensation digitally adjusts sensor sensitivity to maintain its specific detection range when environmental temperature is close to body temperature. 3D optical system The 3D optical system allows for better focusing areas, making it easier to detect moving objects and ensuring that the PIR sensor can receive more accurate signals. The 3D system also allows to protect the area placed under the detector (zero angle detection). Auto Sensitivity The detector is able to automatically adapt to changing environmental conditions and guarantees stability and maintains intruder detection performance. Dual RFL Dual end-of-line resistors reduce installation time. The range of values ​​encompasses most systems. 3mm thick ABS plastic Detector housings provide extraordinary resistance to environmental factors to maintain consistent performance for long periods of time. Features Long range Pyronix volumetric detector with dual PIR Vertical curtain optic with 18m coverage, 20° (24 detection beams and 6 planes) Long range optics with 30m coverage, 20° (46 detection beams and 6 planes) Sealed optics Zero angle detection Maximum installation height of 4m (vertical curtain) or 1.8~2.4m (long span) 0.3~3ms detection speed White light filter (6500 lux) UV filter Selectable sensitivity (automatic, high) Relay output: 60V DC, 50mA, 42.4V AC (RMS) Blue Wave technology reduces false alarms Digital temperature compensation Has selectable EOL resistors Power supply: 9V~16V DC Consumption: 11mA in standby, 13mA in alarm Operating temperature: -30°C ~ +50°C Dimensions: 117 x 69 x 50mm Weight: 125g without stand Includes wall and ceiling brackets Warranty: 5 years Environmental class II EN50131 Degree 2 Certificate

---
