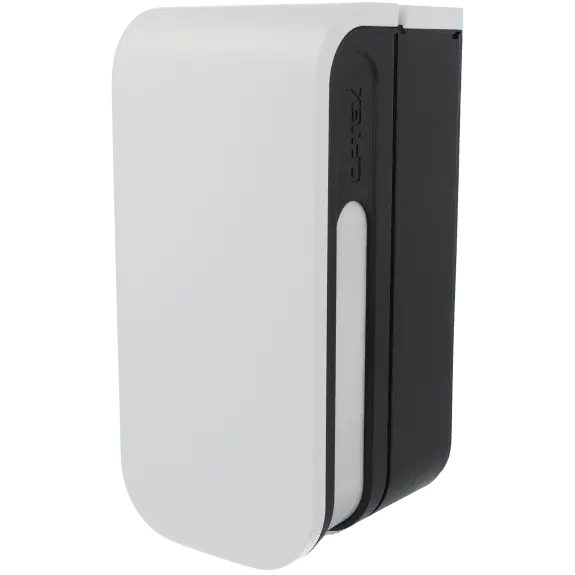

OPTEX curtain volumetric detector / Reference BXS-R

Detection distance: 12 m on each side Detection angle: 40º on each side Detection method: infrared Mounting height: 0.8 m ~ 1.2 m Detection speed: 0.3 m/s ~ 2 m/s Detection fields: 4 (2 on each side) Pet immunity: Yes

LED indicators: Yes LED colors: Red Anti sabotage: Yes Boot time: 60s

Sensor type: Wireless Dual PIR sensor: Yes Sensitivity adjustment: Yes Curtain sensor: Yes

Dimensions: 199.7 x 92.8 x 98.7mm Net weight: 550g Installation: Wall

Operating temperature: -30°C ~ 60°C Degree of protection: IP55 Maximum humidity: 95%

Power mode: DC Voltage: 3V Voltage alarm output (right): 10V Amperage alarm output (right): 100mA Voltage alarm output (left): 10V Amperage alarm output (left): 100mA Standby consumption: 15mA

---
