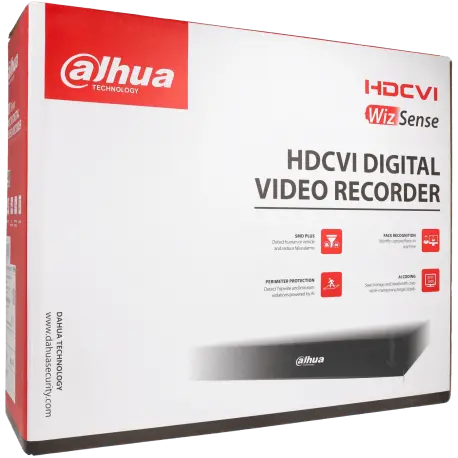

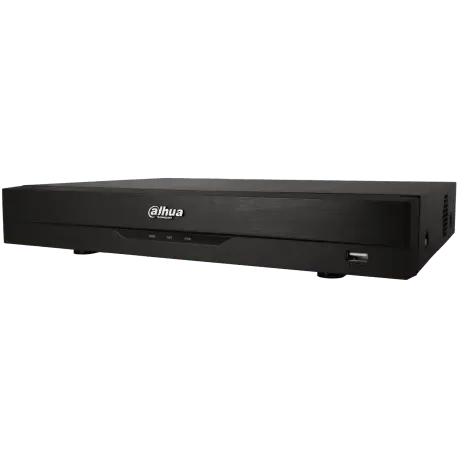

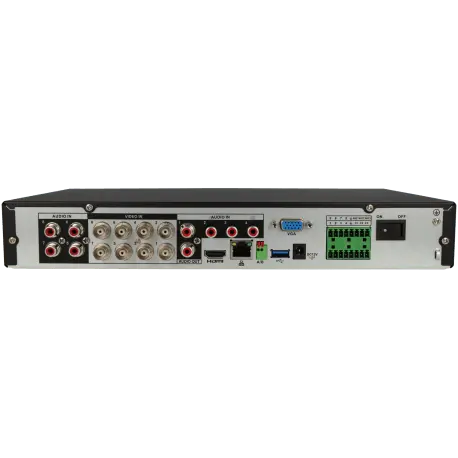

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 8 channels and 8 mpx maximum resolution

Specifications and features: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 8 channels and 8 mpx maximum resolution

T echnology: 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP) Series: Wiz Sense VIDEO BNC channels : 8 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted resolutions HDCVI: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 2 Mpx / 1Mpx Admitted resolutions HDTVI: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 8 BNC cameras + 8 IP cameras Resolution of IP cameras: 8 Megapixels IP channels: 16, replacing BNC channels REGISTRATION Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 8 Megapixels (4K) HDTVI recording resolution: 8 Megapixels AHD recording resolution: 8 Megapixels Frames per second Main Stream: 4K (1 ~ 7fps) / 6Mpx (1 ~ 10fps) / 5Mpx (1 ~ 12fps) / 4Mpx / 3Mpx (1 ~ 15fps) / 4M-N / 1080P / 720P / 960H / D1 / CIF( 1~25/30fps) Frames per second Extra Stream: 960H (1 ~ 15fps) / D1 / CIF (1 ~ 25 / 30fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Schedule (General / Continuous) / MD (Video detection: Motion detection / video loss / manipulation) / alarm / stop Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Resolutions: 8 Mpx / 6Mpx / 5Mpx / 4K-N / 4Mpx / 3Mpx / 4M-N / 2Mpx / 1Mpx / 960H / D1 / CIF Maximum recording resolution: 8 MP VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p) SOUND Audio inputs: 8 Audio outputs: 1 Two-way audio (Full-duplex): Yes STORAGE Number of hard disks allowed: 1 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA ENTRIES EXITS USB 2.0: 1 USB 3.0: 1 RS485: 1 Alarm input: 8 Alarm output: 1 REPRODUCTION AND BACKUP COPY Backup Mode: USB Device / Red Smart Search: Yes Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 / 16 Number of simultaneous channels without IP cameras: 1 / 4 / 8 / 9 NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS SYSTEM (RECORDERS) Processor: Embedded Processor Operating system: Embedded LINUX SMART VIDEO SYSTEM IoT: Yes POS: Yes Face detection: Yes SMD PLUS: Yes, 8 channels (human/vehicle classification) (only for analog cameras) Human / vehicle classification: Yes Motion detection: Yes PERIMETER PROTECTION Number of channels with analysis: 2 channels / 10 IVS rules for each channel (only for analog cameras) FACIAL RECOGNITION Number of channels with facial recognition: 2 channels of facial recognition (only for analog cameras) Database management: Up to 10 databases with 20,000 faces in total / Allows designating name / gender / date of birth / nationality / address / Identification information can be added to each face image MATERIAL AND DIMENSIONS Material: Metal Dimensions: 325 x 257 x 55mm Net weight: 1240g Weight with packaging: 1920 g Installation: Desktop / Rack Chassis: Mini 1U ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 10W Amperage: 2000mA

---
