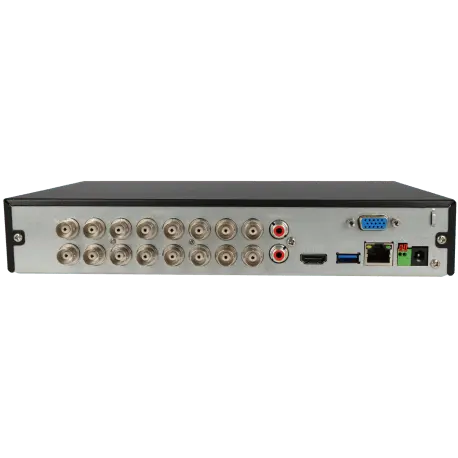

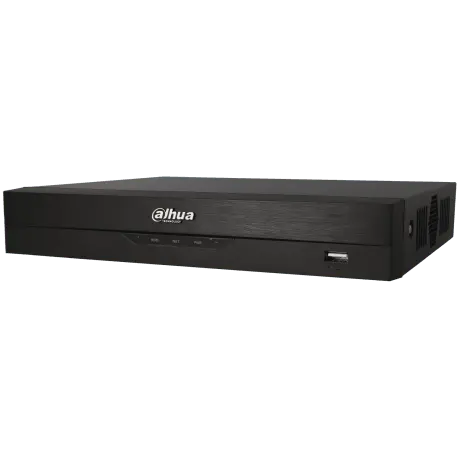

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 16 channels and 2 mpx maximum resolution
Specifications and features: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 16 channels and 2 mpx maximum resolution
T echnology: 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP)
Series: Wiz Sense
VIDEO
BNC
channels : 16
Video formats: HDCVI / TVI / AHD / CVBS / IP
Admitted resolutions HDCVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx
Admitted resolutions HDTVI: 5MP / 4MP / 3MP / 2MP / 1MP
Admitted resolutions AHD: 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx
CVBS cameras: Yes
IP cameras accepted: 16 BNC cameras + 8 IP cameras
Resolution of IP cameras: 6 Megapixels
IP channels: 24, replacing BNC channels
REGISTRATION
Video compression: H.265+ / H.265 / H.264+ / H.264
HDCVI recording resolution: 2 Megapixels (1080p)
HDTVI recording resolution: 2 Megapixels (1080p)
AHD recording resolution: 2 Megapixels (1080p)
Frames per second Main Stream: 5M-N (1 ~ 10fps) / 4M-N / 1080P (1 ~ 15fps) / 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps)
Extra Stream Frames Per Second: D1/CIF (1~15fps)
Video bit rate: 32Kbps ~ 6144Kbps per channel
Audio compression: G.711A / G.711U / PCM
Audio sampling rate: 8KHz, 16 bit per channel
Audio bit rate: 64Kbps per channel
Maximum recording resolution: 2 MP
VIDEO OUTPUT
HDMI output number: 1
Number of VGA outputs: 1
HDMI resolution: 2 Megapixels (1080p)
VGA resolution: 2 Megapixels (1080p)
SOUND
Audio inputs: 1
Audio outputs: 1
Two-way audio (Full-duplex): Yes
STORAGE
Number of hard disks allowed: 1
Maximum hard disk size (unit): 16 TB
HDD Type: 3.5" SATA
ENTRIES EXITS
USB 2.0: 1
USB 3.0: 1
RS485: 1
REPRODUCTION AND BACKUP COPY
Backup Mode: USB Device / Red
Smart Search: Yes
Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 / 16 / 25
Number of simultaneous channels without IP cameras: 1 / 4 / 8 / 9 / 16
VIDEO DETECTION AND ALARM
Video detection type: Manual, Schedule (General), MD (Video detection: Motion Detection, Video), Alarm, Stop
NETWORK CHARACTERISTICS
RJ45 port number: 1
RJ45 speed: 10 / 100 / 1000Mbps
Mobile devices: Android / IOS (Apple)
ONVIF: Yes
Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software
Software: SmartPSS
App: iDMSS / gDMSS
SYSTEM (RECORDERS)
Processor: Embedded Processor
Operating system: Embedded LINUX
SMART VIDEO SYSTEM
IoT: Yes
POS: Yes
Face detection: Yes
SMD PLUS: Yes, 16 channels (human/vehicle classification) (only for analog cameras)
Human / vehicle classification: Yes
Motion detection: Yes
PERIMETER PROTECTION
Number of channels with analysis: 2 channels / 10 IVS rules for each channel (only for analog cameras)
FACIAL RECOGNITION
Number of channels with facial recognition: 2 channels of facial recognition (only for analog cameras)
MATERIAL AND DIMENSIONS
Material: Metal
Dimensions: 260 x 237.9 x 47.6mm
Net weight: 1170g
Weight with packaging: 1570 g
Installation: Desktop / Rack
Chassis: Compact 1U
ATMOSPHERE
Working Temperature: -10ºC~55ºC
Use: Indoor
Max Humidity: 93%
FOOD AND CONSUMPTION
Power mode: DC
Voltage: 12V
Consumption (w): 12W
Amperage: 2000mA
