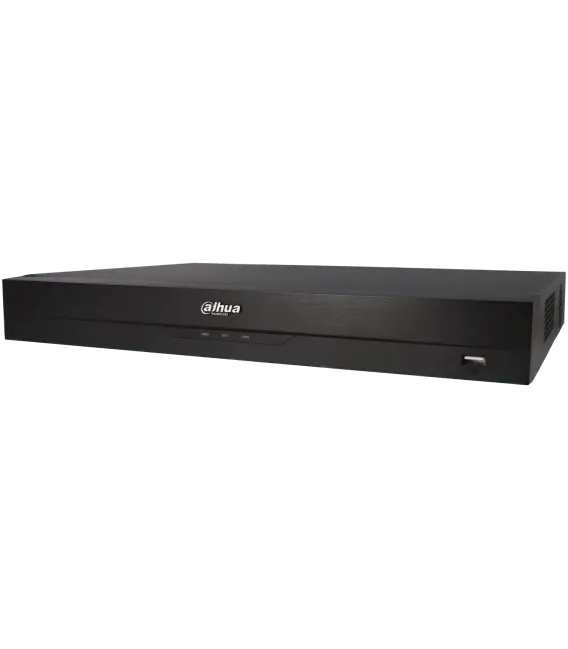

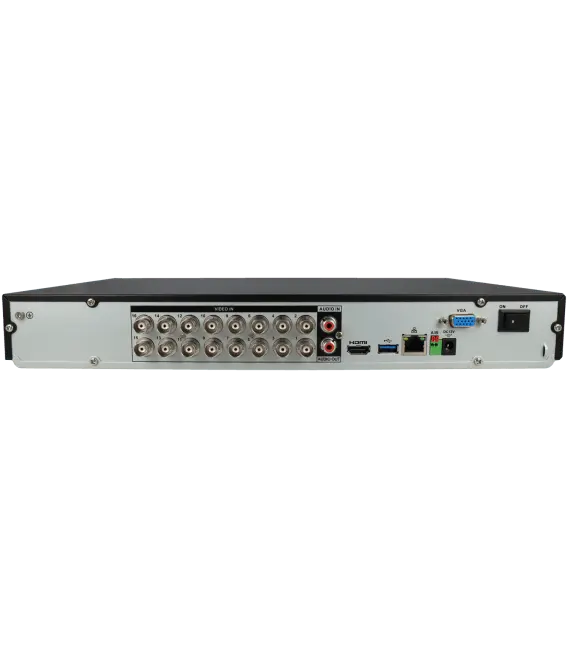

Specifications and features: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 16 channels and 2 mpx maximum resolution

T echnology: 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP) Series: Wiz Sense VIDEO BNC channels : 16 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted resolutions HDCVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions HDTVI: 5MP / 4MP / 3MP / 2MP / 1MP Admitted resolutions AHD: 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 16 BNC cameras + 8 IP cameras Resolution of IP cameras: 6 Megapixels IP channels: 24, replacing BNC channels REGISTRATION Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 2 Megapixels (1080p) HDTVI recording resolution: 2 Megapixels (1080p) AHD recording resolution: 2 Megapixels (1080p) Frames per second Main Stream: 5M-N (1 ~ 10fps) / 4M-N / 1080P (1 ~ 15fps) / 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Extra Stream Frames Per Second: D1/CIF (1~15fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 2 MP VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p) SOUND Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes STORAGE Number of hard disks allowed: 2 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA ENTRIES EXITS USB 2.0: 1 USB 3.0: 1 RS485: 1 REPRODUCTION AND BACKUP COPY Backup Mode: USB Device / Red Smart Search: Yes Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 / 16 / 25 Number of simultaneous channels without IP cameras: 1 / 4 / 8 / 9 / 16 VIDEO DETECTION AND ALARM Video detection type: Manual, Schedule (General), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS SYSTEM (RECORDERS) Processor: Embedded Processor Operating system: Embedded LINUX SMART VIDEO SYSTEM IoT: Yes POS: Yes Face detection: Yes SMD PLUS: Yes, 16 channels (human/vehicle classification) (only for analog cameras) Human / vehicle classification: Yes Motion detection: Yes PERIMETER PROTECTION Number of channels with analysis: 2 channels / 10 IVS rules for each channel (only for analog cameras) FACIAL RECOGNITION Number of channels with facial recognition: 2 channels of facial recognition (only for analog cameras) MATERIAL AND DIMENSIONS Material: Metal Dimensions: 375 x 288 x 53mm Net weight: 1550g Weight with packaging: 2860 g Installation: Desktop / Rack Chassis: 1U ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 12W Amperage: 4000mA

---
