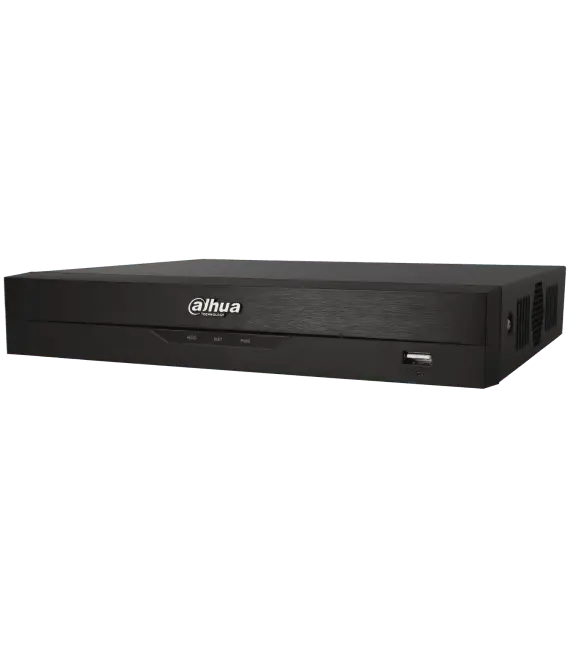

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 4 channels and 2 mpx maximum resolution / Reference XVR5104HS-I3

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 4 channels and 2 mpx maximum resolution

Specifications and features: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 4 channels and 2 mpx maximum resolution

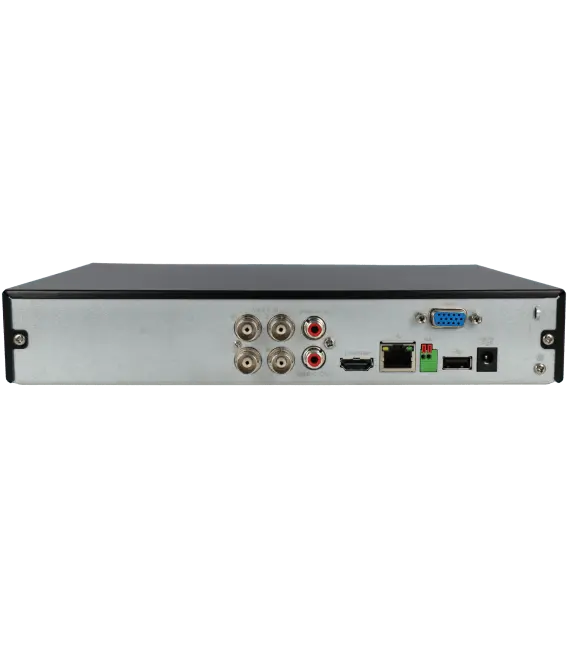

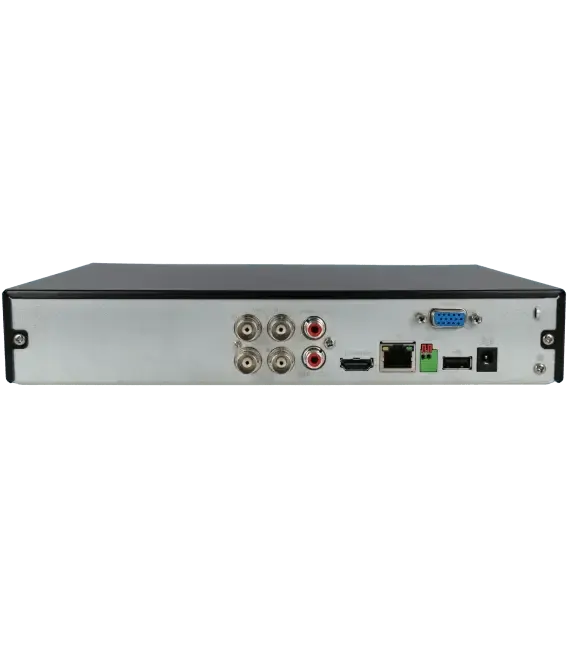

T echnology: 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP) Series: Series 5 VIDEO BNC channels : 4 Admitted resolutions HDCVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions HDTVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 5Mpx / 4Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 4 BNC cameras + 2 IP cameras Resolution of IP cameras: 6 Megapixels IP channels: 6, replacing BNC channels REGISTRATION Video compression: H.265 / H.264 HDCVI recording resolution: 2 Megapixels (1080p) HDTVI recording resolution: 2 Megapixels (1080p) AHD recording resolution: 2 Megapixels (1080p) Frames per second Main Stream: 5M-N (1 ~ 10fps) / 4M-N / 1080P (1 ~ 15fps) / 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Extra Stream Frames Per Second: D1/CIF (1~15fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Schedule (General / Continuous) / MD (Video detection: Motion detection / video loss / manipulation) / alarm / stop Recording interval: 1 ~ 60 min (default: 60 min) / Pre-record: 1 ~ 30 sec / Post-record: 10 ~ 300 sec Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 2 MP VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p) SOUND Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes STORAGE Number of hard disks allowed: 1 Maximum hard disk size (unit): 6 Tb HDD Type: 3.5" SATA ENTRIES EXITS USB2.0: 2 RS485: 1 REPRODUCTION AND BACKUP COPY Search Mode: Date / Time / Alarm / Motion Detection / Exact Search Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device / Red Smart Search: Yes Number of simultaneous channels with IP cameras: 1 / 4 / 6 No. of simultaneous channels without IP cameras: 1 / 4 Warning Icon Types: Camera Title / Time / Video Loss / Camera Lock / Motion Detection / Recording Synchronized reproduction: 1 / 4 VIDEO DETECTION AND ALARM Detection Functions: Recording / PTZ / Tour / Video Push / Email / FTP / Snapshot / Buzzer and Screen Tips Video Detection Type: Motion Detection / MD Zones: 396 (22 × 18) NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 100Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS SYSTEM (RECORDERS) Processor: Embedded Processor Operating system: Embedded LINUX SMART VIDEO SYSTEM IoT: Yes POS: Yes SMD PLUS: Yes, 4 channels (human/vehicle classification) (only for analog cameras) PERIMETER PROTECTION Number of channels with analysis: 1 channel / 10 IVS rules for each channel (only for analog cameras) Type of identification: Human / vehicle secondary recognition by line crossing and intrusion Smart search: Search by classification (Human / Vehicle) FACIAL RECOGNITION Number of faces: 8 faces processed per second Number of channels with facial recognition: 1 video facial recognition channel (only for analog cameras) Strange way: Warning of faces not registered in database AI search (artificial intelligence): Up to 8 simultaneous faces Database application: Each database can apply to video channels independently Actions available after detection: Buzzer / voice indicators / email / snapshot / recording / alarm output / PTZ activation MATERIAL AND DIMENSIONS Material: Metal Dimensions: 260 x 237.9 x 47.6mm Net weight: 840g Weight with packaging: 1370 g Installation: Desktop / Rack Chassis: Compact 1U ATMOSPHERE Operating Temperature: -10ºC ~ 45ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 4W Amperage: 1500mA

---
