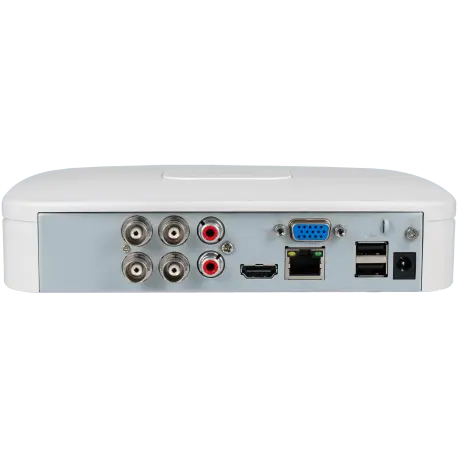

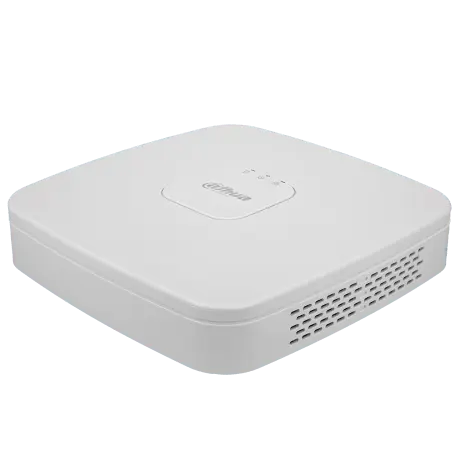

5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and IP) DAHUA for 4 channels and 8 mpx maximum resolution / Reference XVR5104C-4KL-I3

BNC channels: 4 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted HDCVI resolutions: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 2 Mpx / 1Mpx Admitted resolutions HDTVI: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 4 BNC cameras + 4 IP cameras Resolution of IP cameras: 8 Megapixels IP channels: 8, replacing BNC channels

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 8 Megapixels (4K) HDTVI recording resolution: 8 Megapixels AHD recording resolution: 8 Megapixels Frames per second Main stream: 4K (1 ~ 7fps) / 6Mpx (1 ~ 10fps) / 5Mpx (1 ~ 12fps) / 4Mpx / 3Mpx (1 ~ 15fps) / 4M-N / 1080P / 720P / 960H / D1 / CIF( 1~25/30fps) Frames per second Extra Stream: 960H (1 ~ 15fps) / D1 / CIF (1 ~ 25 / 30fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Programming (General / Continuous) / MD (Video detection: Motion detection / loss of video / manipulation) / alarm / stop Recording interval: 1 ~ 60 min (default: 60 min) / Pre-record: 1 ~ 30 sec / Post-record: 10 ~ 300 sec Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 8 Mpx

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p)

Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Admitted hard drive number: 1 Maximum hard disk size (unit): 10 TB HDD Type: 3.5" SATA

USB2.0: 2 RS485: 1

Search mode: Date / Time / Alarm / Motion detection / Exact search Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device / Red Smart search: Yes Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 No. simultaneous channels without IP cameras: 1/4 Warning icon types: Camera title / time / video loss / camera blocking / motion detection / Recording

Detection functions: Recording / PTZ / Tour / Video Push / Email / FTP / Snapshot / Buzzer and on-screen guidance Video detection type: Motion Detection / MD Zones: 396 (22 × 18) / Video Loss, Tampering, Diagnosis

RJ45 port number: 1 RJ45 speed: 100Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote viewing: Web browser (ActiveX) / Smartphone App / Smart PSS Software Software: SmartPSS App: iDMSS / gDMSS

Processor: Embedded Processor Operating system: Embedded LINUX

IoT: Yes POS: Yes SMD PLUS: Yes, 4 channels (human/vehicle classification) (only for analog cameras)

Number of channels with analysis: 1 channel / 10 IVS rules for each channel (only for analog cameras) Type of identification: Secondary human/vehicle recognition by line crossing and intrusion Intelligent search: Search by classification (Human / Vehicle)

Number of faces: 8 faces processed per second Number of channels with facial recognition: 1 video facial recognition channel (only for analog cameras) Strange way: Warning of faces not saved in the database AI search (artificial intelligence): Up to 8 simultaneous faces Database management: Up to 10 databases with 20,000 faces in total / Allows you to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image Application of databases: Each database can be applied to video channels of independent form Actions available after detection: Buzzer / voice indicators / email / snapshot / recording / alarm output / PTZ activation

Dimensions: 204.6 x 210.9 x 45.6 mm Net weight: 530g Weight with packaging: 1070 g Installation: Desktop Chassis: Smart 1U

Operating temperature: -10ºC ~ 55ºC Use: Interior Maximum humidity: 90%

Power supply mode: DC Voltage: 12V Consumption (w): 7W Amperage: 2000mA

---
