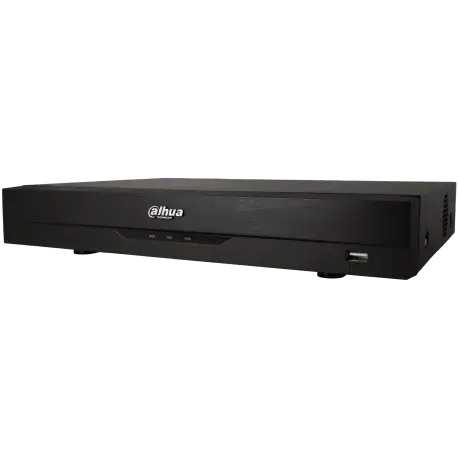

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 16 channels and 8 mpx maximum resolution / Reference XVR5116H-4KL-I3

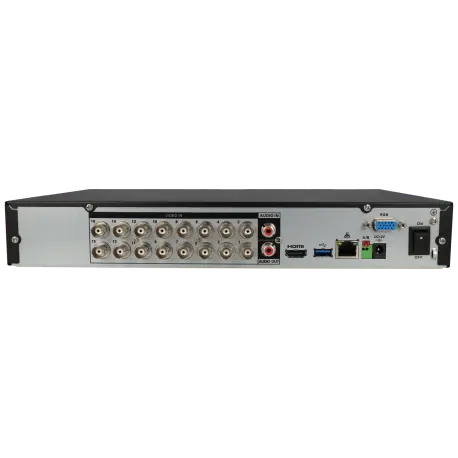

BNC channels: 16 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted resolutions HDCVI: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 2 Mpx / 1Mpx Admitted resolutions HDTVI: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 16 BNC cameras + 16 IP cameras Resolution of IP cameras: 8 Megapixels IP channels: 32, BNC

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 8 Megapixels (4K) HDTVI recording resolution: 8 Megapixels AHD recording resolution: 8 Megapixels Frames per second Main Stream: 4K (1 ~ 7fps) / 6Mpx (1 ~ 10fps) / 5Mpx (1 ~ 12fps) / 4Mpx / 3Mpx (1 ~ 15fps) / 4M-N / 1080P / 720P / 960H / D1 / CIF( 1~25/30fps) Frames per second Extra Stream: 960H (1 ~ 15fps) / D1 / CIF (1 ~ 25 / 30fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 8 MP

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p)

Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Number of hard disks allowed: 1 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA

USB 2.0: 1 USB 3.0: 1 RS485: 1

Simultaneous cameras in reproduction: 1 / 4 / 9 / 16 Backup Mode: USB Device / Red Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 / 16 / 25 / 36 Number of simultaneous channels without IP cameras: 1 / 4 / 8 / 9 / 16

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web (ActiveX) / Smartphone App / Smart PSS Software Software: SmartPSS App: iDMSS / gDMSS

Processor: Integrated industrial-grade processor Operating system: Embedded LINUX

Face detection: Yes SMD PLUS: Yes, 16 channels (human/vehicle classification) (only for analog cameras) Motion detection: Yes

Number of channels with analysis: 8 channels / 10 IVS rules for each channel (only for analog cameras)

Number of channels with facial recognition: 2 channels of facial recognition (only for analog cameras) Database management: Up to 10 databases with 20,000 faces in total / Allows designating name / gender / date of birth / nationality / address / Identification information can be added to each face image

Material: Metal Dimensions: 325 x 257 x 55mm Net weight: 1240g Weight with packaging: 2100 g Installation: Desktop / Rack Chassis: Mini 1U

Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 15W Amperage: 3000mA

---
