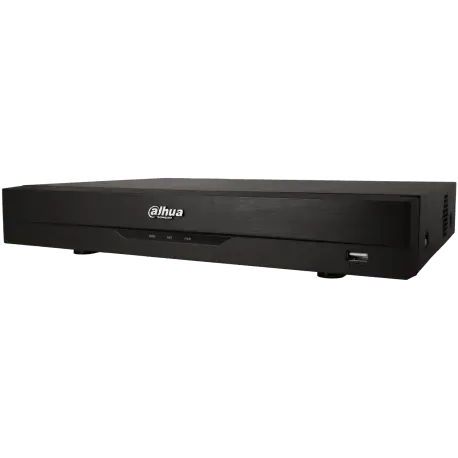

5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and IP) DAHUA for 4 channels and 8 mpx maximum resolution / Reference XVR5104HE-4KL-I3

BNC channels: 4 Video formats : HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 2 Mpx / 1Mpx HDTVI accepted resolutions: 8Mpx / 5Mpx / 4Mpx / 2Mpx / 1Mpx Accepted AHD resolutions: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx IP cameras accepted: 4 BNC cameras + 4 IP cameras Resolution of IP cameras: 8 Megapixels IP channels: 8, replacing BNC channels

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 8 Megapixels (4K) HDTVI recording resolution: 8 Megapixels AHD recording resolution: 8 Megapixels Frames per second Main Stream: 4K (1 ~ 7fps) / 6Mpx (1 ~ 10fps) / 5Mpx (1 ~ 12fps) / 4Mpx / 3Mpx (1 ~ 15fps) / 4M-N / 1080P / 720P / 960H / D1 / CIF( 1~25/30fps) Frames per second Extra Stream: 960H (1 ~ 15fps) / D1 / CIF (1 ~ 25 / 30fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Audio compression: G.711A / G.711U / PCM Audio sampling frequency: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Resolutions: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 4M-N / 2Mpx / 1Mpx / 960H / D1 / CIF Maximum recording resolution: 8 Mpx

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p)

Audio inputs: 4 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Admitted hard drive number: 1 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA

USB2.0: 2 RS485: 1 Alarm input: 8 Alarm output: 3

Backup Mode: USB Device / Red Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 No. simultaneous channels without IP cameras: 1/4 Synchronized playback: 1/4

RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote viewing: Web browser (ActiveX) / Smartphone App / Smart PSS Software Software: SmartPSS App: iDMSS / gDMSS

Processor: Industrial-grade integrated processor Operating system: Embedded LINUX

IoT: Yes POS: Yes Face detection: Yes SMD PLUS: Yes, 4 channels (human/vehicle classification) (only for analog cameras) Motion detection: Yes

Number of channels with analysis: 4 channels / 10 IVS rules for each channel (only for analog cameras)

Number of channels with facial recognition: 1 video facial recognition channel (only for analog cameras) Database management: Up to 10 databases with 20,000 faces in total / Allows you to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image

Material: Metal Dimensions: 325 x 257 x 55 mm Net weight: 1300g Weight with packaging: 1900 g Installation: Desktop / Rack Chassis: Mini 1U

Working Temperature: -10ºC~55ºC Use: Interior Maximum humidity: 90%

Power supply mode: DC Voltage: 12V Consumption (w): 7W Amperage: 2000mA

---
