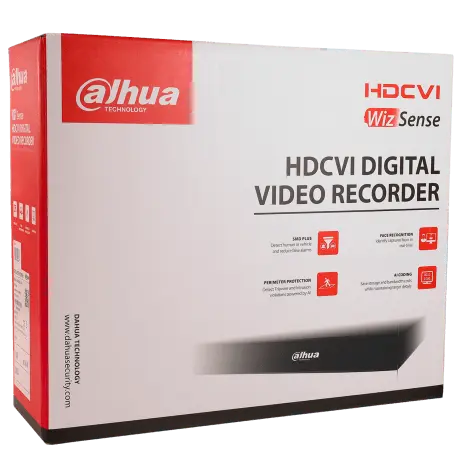

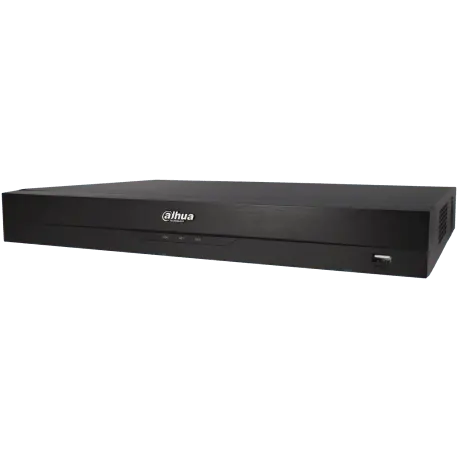

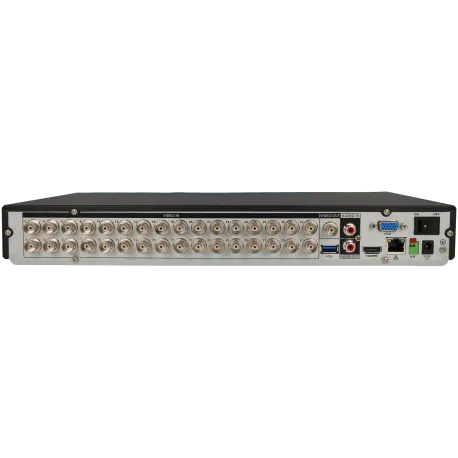

Enregistreur DAHUA 5 en 1 (hd-cvi, hd-tvi, ahd, analogique et ip) pour 32 canaux et 2 mpx de résolution maximale / Référence XVR5232AN-I3

+ de 40 000 clients satisfaits

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 32 channels and 2 mpx maximum resolution / Reference XVR5232AN-I3

Name: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 32 channels and 2 mpx maximum resolution / Reference XVR5232AN-I3
Brand: TSA Distribution
Price: 400.4 EUR
Availability: InStock

Excellent ★★★★★★ Trustindex

400,40€

Tax excluded. Shipping calculated at checkout

In stock

Commandé avant 13h, expédié dès aujourd'hui !

Quantity:

Infos clés du produit

Aucun abonnement
Système fiable et pérennisé
Léger, facile à manipuler et installer

SAV & garantie

Garantie 2 ans
Un Service Client à votre disposition
Profitez de la qualité avec des marques certifiées
Retours acceptés sous 14 jours pour changer d'avis
Livraison Express estimée en 48H
Garantie de livraison en cas de perte du colis ou article endommagé
Paiement sécurisé

Politique de retour

Politique de retour de TSA Distribution : si vous n’êtes pas satisfait d'un produit que vous avez commandé auprès de TSA Distribution ou si celui-ci est défectueux ou endommagé, vous pouvez nous le retourner sous 14 jours suivant la date de livraison, et nous vous rembourserons sous forme d’avoir ou remplacerons l'intégralité de l'article. Pour plus d’informations, veuillez consulter notre page en savoir plus sur les retours et remboursements. Si un défaut apparaissait sur votre produit passé la période de 14 jours, et durant toute la période de garantie, vous pouvez nous contacter.

Description

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 32 channels and 2 mpx maximum resolution

Specifications and features: DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 32 channels and 2 mpx maximum resolution

T echnology: 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP) Series: Series 5

VIDEO

BNC channels : 32 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted resolutions HDCVI: 5Mpx / 4Mpx / 2Mpx / 1Mpx Admitted resolutions HDTVI: 5MP / 4MP / 3MP / 2MP / 1MP Admitted resolutions AHD: 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx IP cameras accepted: 32 IP cameras (replacing BNC channels) Resolution of IP cameras: 6 Megapixels

REGISTRATION

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 2 Megapixels (1080p) HDTVI recording resolution: 2 Megapixels (1080p) AHD recording resolution: 2 Megapixels (1080p) Frames per second Main Stream: 5M-N (1 ~ 10fps) / 4M-N / 1080P (1 ~ 15fps) / 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Extra Stream Frames Per Second: D1/CIF (1~25fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Input Bandwidth: 128Mbps Output Bandwidth: 128Mbps Maximum recording resolution: 2 MP

VIDEO OUTPUT

HDMI output number: 1 Number of VGA outputs: 1 BNC output number: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p)

SOUND

Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

STORAGE

Number of hard disks allowed: 2 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA

ENTRIES EXITS

USB 2.0: 1 USB 3.0: 1 RS485: 1

REPRODUCTION AND BACKUP COPY

Simultaneous cameras in reproduction: 1 / 4 / 8 / 9 / 16 / 25 / 36 Backup Mode: USB Device / Red Synchronized playback: 1 / 4 / 9 / 16

NETWORK CHARACTERISTICS

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web (ActiveX) / Smartphone App / Smart PSS Software Software: SmartPSS App: iDMSS / gDMSS

SYSTEM (RECORDERS)

Processor: Integrated industrial-grade processor Operating system: Embedded LINUX

SMART VIDEO SYSTEM

IoT: Yes POS: Yes Face detection: Yes SMD PLUS: Yes, 16 channels (human/vehicle classification) (only for analog cameras)

PERIMETER PROTECTION

Number of channels with analysis: 4 channels / 10 IVS rules for each channel (only for analog cameras)

FACIAL RECOGNITION

Number of channels with facial recognition: 2 channels of facial recognition (only for analog cameras)

MATERIAL AND DIMENSIONS

Material: Metal Dimensions: 375 x 289 x 53mm Net weight: 1980g Weight with packaging: 3150 g Installation: Desktop / Rack Chassis: 1U

ATMOSPHERE

Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90%

FOOD AND CONSUMPTION

Power mode: DC Voltage: 12V Consumption (w): 17W Amperage: 5000mA

Our online store also offers surveillance cameras, IP cameras and complete video surveillance kits. Here again, our specialists have selected the most reputable brands for you, including: Hikvision, Dahua. In addition to these flagship products, TSA Distribution's offer also includes access control systems (video door entry system, connected lock). Our team specializing in domestic security is at your disposal from Monday to Friday on 09 52 60 07 67 (non-surcharged call). Do not hesitate to contact us for advice, information, navigation assistance on our site, for a quote or for order follow-up. In order to guarantee your satisfaction, TSA Distribution not only offers quality products at the most competitive prices on the market, but also technical assistance for installation that is totally free. Our team are at your disposal to help you configure your alarm, your surveillance cameras or your access control equipment.

DAHUA 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 32 channels and 2 mpx maximum resolution / Reference XVR5232AN-I3

400,40€
