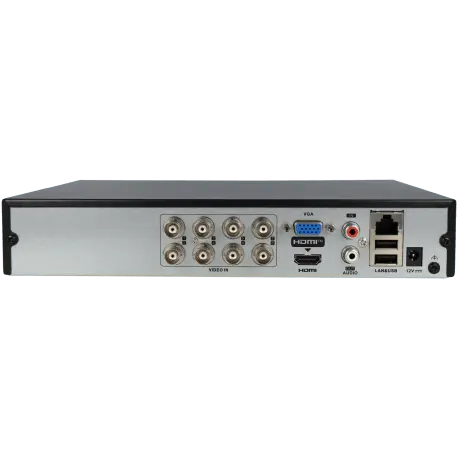

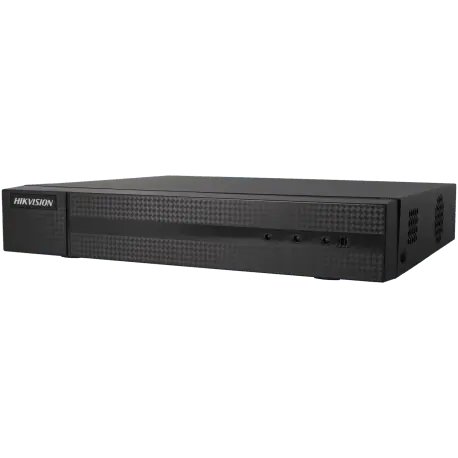

HIKVISION 5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and ip) for 8 channels and 8 mpx maximum resolution / Reference HWD-7108MH-G4

BNC channels : 8 Video formats: HDCVI / TVI / AHD / CVBS / IP Admitted HDCVI resolutions: 4 Mpx / 2 Mpx / 1 Mpx Admitted resolutions HDTVI: 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx Admitted resolutions AHD: 5Mpx / 4Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 8 BNC cameras + 4 IP cameras Resolution of IP cameras: 8 Megapixels IP channels: 12, replacing BNC channels

Video compression: H.265 / H.264 HDCVI recording resolution: 8 Megapixels (4K) HDTVI recording resolution: 8 Megapixels AHD recording resolution: 8 Megapixels Frames per second Main Stream: 8Mpx (8fps) / 5Mpx (12fps) / 4Mpx (15fps) / 3Mpx (18fps) / 2Mpx / 1Mpx / WD1 / 4CIF / VGA / CIF (25fps (P)/30fps (N)) Frames per second Extra Stream: WD1 / 4CIF / CIF (25fps (P) / 30fps (N)) Video bit rate: 32 Kbps ~ 10 Mbps Audio compression: G.711u Audio bit rate: 64Kbps per channel Resolutions: 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx / WD1 / 4CIF / VGA / CIF Maximum recording resolution: 8 MP

HDMI output number: 1 Number of VGA outputs: 2 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p) Similar video signals: HDMI and VGA

Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Number of hard disks allowed: 1 Maximum hard disk size (unit): 10 Tb HDD Type: 3.5" SATA

USB2.0: 2

Smart Search: Yes Synchronized playback: 8

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Maximum number of users: 64 Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web / Smartphone App and Hik-Connect Software. Software: IVMS App: Hik-Connect

Human / vehicle classification: Yes Motion detection: Yes

Material: Metal Net weight: 1600g Installation: Desktop / Rack Chassis: 1U

Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 10W Amperage: 2000mA

---
