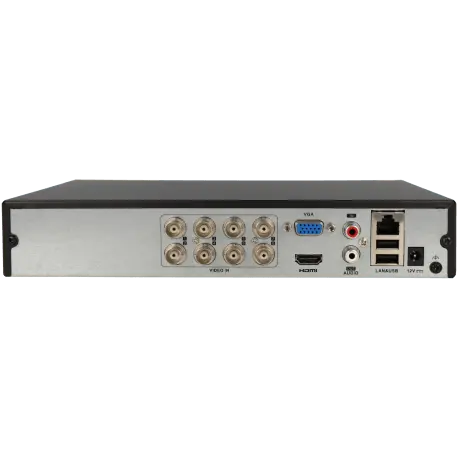

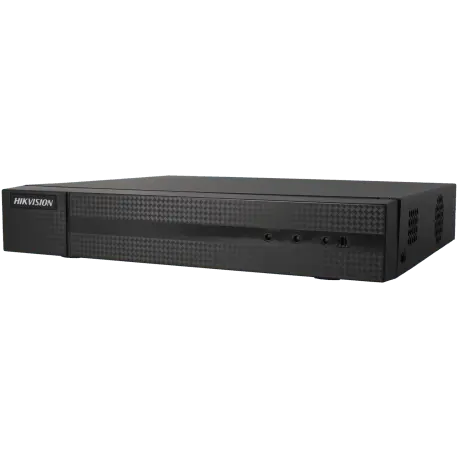

5 in 1 recorder (hd-cvi, hd-tvi, ahd, analog and IP) HIKVISION for 8 channels and 2 mpx maximum resolution / Reference HWD-6108MH-G4

BNC channels : 8 Video formats: HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 4Mpx / 2mpx / 1Mpx Admitted resolutions HDTVI: 4Mpx / 3Mpx / 2Mpx / 1Mpx Accepted resolutions AHD: 4Mpx / 2Mpx / 1Mpx CVBS cameras: Yes IP cameras accepted: 8 BNC cameras + 4 IP cameras Resolution of IP cameras: 6 Megapixels IP channels: 12, replacing BNC channels

Video compression: H.265 / H.264 HDCVI recording resolution: 2 Megapixels (1080p) HDTVI recording resolution: 2 Megapixels (1080p) AHD recording resolution: 2 Megapixels (1080p) Frames per second Main stream: 4 MP lite (1 ~ 15fps) / 1080p lite / 720p / WD1 / 4CIF / VGA / CIF (1 ~ 25fps / 30fps) Frames per second Extra Stream: WD1 / 4CIF (1 ~ 12fps) / CIF (1 ~ 25fps) (P) / 30fps (N) Video bit rate: 32 Kbps ~ 6 Mbps Audio compression: G.711u Audio bit rate: 64Kbps per channel Maximum recording resolution: 2 MP

HDMI output number: 1 VGA output number: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p) Similar video signals: HDMI and VGA

Audio Inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Number of hard disks allowed: 1 Maximum hard disk size (unit): 10 Tb HDD type: 3.5" SATA

USB2.0: 2

Smart Search: Yes Synchronized playback: 8

RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Maximum number of users: 64 Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser / Smartphone App and Hik-Connect Software. Software: IVMS App: Hik-Connect

Human/vehicle classification: Yes Motion detection: Yes

Material: Metal Dimensions: 260 x 222 x 45 mm Net weight: 1000g

Working Temperature: -10ºC~55ºC Use: Interior Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 12W Amperage: 1330mA

---
