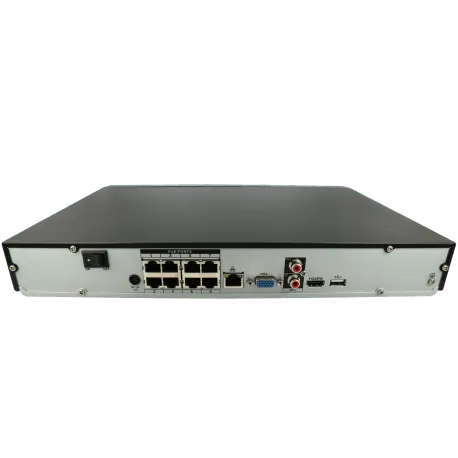

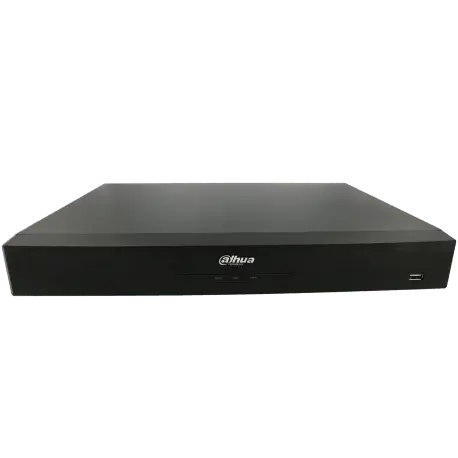

DAHUA IP recorder 8 channels and 12 mpx / Reference NVR2208-8P-I2

Resolution of IP cameras: 12 Megapixels IP channels: 8

Video compression: H.265+ / H.265 / H.264+ / H.264 Bandwidth IP cameras: 200Mbps Recording mode: Manual / programmable / motion detection Maximum recording resolution: 12 MP

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p)

Audio inputs: 1 Audio outputs: 1

Number of hard disks allowed: 2 Maximum hard disk size (unit): 8 Tb HDD Type: 3.5" SATA

USB2.0: 2

Simultaneous cameras in reproduction: 1 / 4 / 8 / 9 Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes PoE ports: 8 PoE type: 802.3af PoE consumption: 25.5W per Port / 80W in total Software: SmartPSS App: iDMSS / gDMSS

Processor: Integrated industrial-grade processor Operating system: Embedded LINUX

Privacy Mask: Yes SMD PLUS: Yes, 4 channels (man/vehicle classification)

Number of channels with analysis: 2 channels Type of identification: Secondary human / vehicle recognition by line crossing and intrusion Smart search: Search by classification (Human / Vehicle)

Number of faces: 8 faces processed per second Number of channels with facial recognition: 1 channel of video facial recognition Strange way: Warning of faces not registered in database AI search (artificial intelligence): Up to 8 simultaneous faces Database management: Up to 10 databases with 5000 faces in total / Allows to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image Database application: Each database can apply to video channels independently Actions available after detection: Buzzer / voice indicators / email / snapshot / recording / alarm output / PTZ activation

Dimensions: 375 x 281.5 x 56mm Net weight: 1700g Weight with packaging: 3100 g

Operating temperature: -10°C ~ +55°C Use: Indoor Max Humidity: 90%

Power mode: DC Voltage: 54V Consumption (w): 10W Amperage: 2200mA

---
