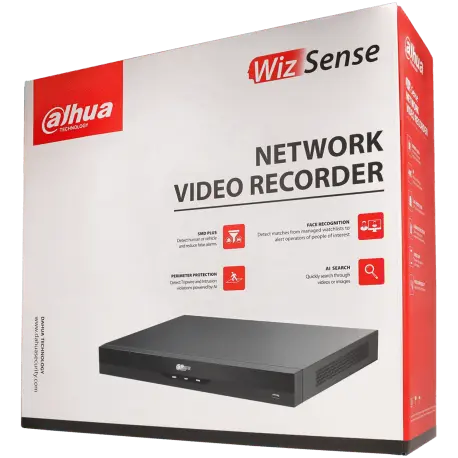

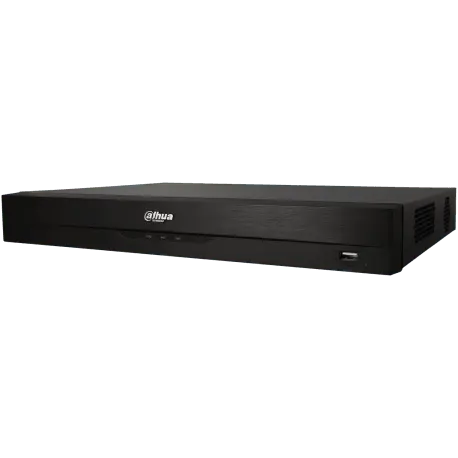

DAHUA IP recorder for 16 channels and 32 mpx resolution / Reference NVR5216-EI

IP channels : 16

Video compression: H.265 / H.264 Recording mode: General / motion detection / smart / alarm / POS Audio compression: PCM / G.711A / G.711U / G.726 Resolutions: 32Mpx / 24Mpx / 16Mpx / 12Mpx / 4K / 5Mpx / 4Mpx / 1080p / 720p / D1 / CIF / QCIF Input bandwidth: 384Mbps Output Bandwidth: 384Mbps Maximum recording resolution: 32 MP

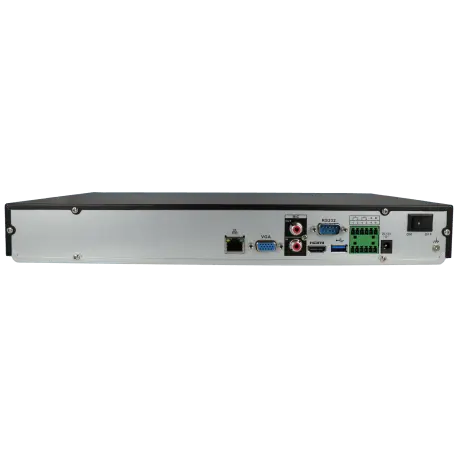

HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 8 Megapixels Similar video signals: HDMI and VGA

Audio inputs: 1 Audio outputs: 1

Number of hard drives allowed: 2 Maximum hard disk size (unit): 16 TB HDD Type: 3.5" SATA

USB2.0: 1 USB 3.0: 1 RS232: 1 RS485: 1 Alarm input: 4 Alarm output: 2

Simultaneous cameras in reproduction: 1 / 4 / 8 / 9 / 16 Backup Mode: USB Device / Red Synchronized playback: 16

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS

Processor: Industrial-grade integrated processor Operating system: Embedded LINUX

Privacy mask: Yes Face detection: Yes, 2 channels, up to 12 frames/sec. People counting: Yes SMD PLUS: Yes, 8 channels (human/vehicle classification) Modify detection: Yes

Number of channels with analysis: 4 channels / 10 IVS rules for each channel

Number of faces: 12 faces processed per second Number of channels with facial recognition: 2 channels of facial recognition Database management: Up to 20 databases with 20,000 faces in total / Allows you to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image

Face: Men-women / age / glasses / beard / mask / expression Human body: Clothing style / clothing color / color / hat / bags… Non-motorized vehicle: Type / color / helmet / people in the vehicle

Material: Metal Dimensions: 375 x 284.3 x 53mm Net weight: 1550 g Weight with packaging: 2750 g Installation: Desktop / Rack Chassis: 1U

Operating temperature: -10ºC ~ 55ºC Use: Interior Maximum humidity: 93%

Power mode: DC Voltage: 12V Consumption (w): 10W Amperage: 4000mA

---
