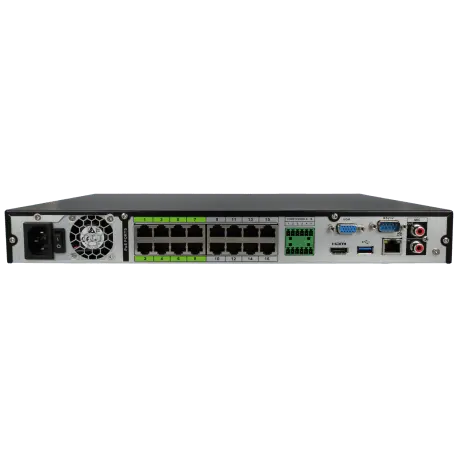

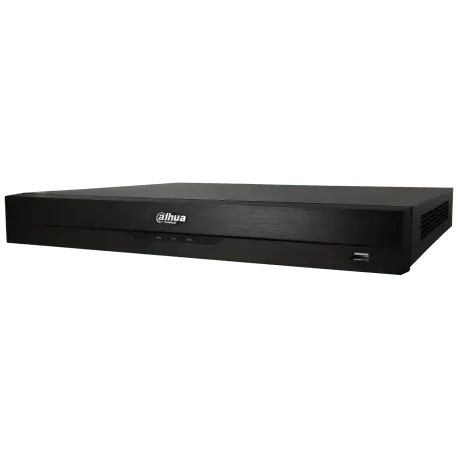

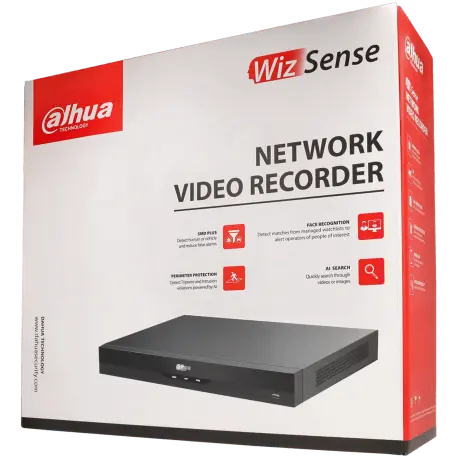

DAHUA IP recorder for 16 channels and 32 mpx resolution with 16 PoE ports / Reference NVR5216-16P-EI

IP channels : 16

Video compression: H.265 / H.264 Recording Mode: General / Motion Detection / Smart / Alarm / POS Audio compression: G.711 / AAC / G.722 / G.726 Resolutions: 32Mpx / 24Mpx / 16Mpx / 12Mpx / 4K / 5Mpx / 4Mpx / 1080p / 720p / D1 / CIF / QCIF Input bandwidth: 384Mbps Output bandwidth: 384Mbps Maximum recording resolution: 32 Mpx

USB2.0: 1 USB 3.0: 1 RS232: 1 RS485: 1 Alarm input: 4 Alarm output: 2

RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software PoE ports: 16 PoE type: 802.3af/at / Supports ePoE on channels 1 to 8 PoE consumption: 25.5W per Port / 130W in total Software: SmartPSS App: iDMSS / gDMSS

HDMI output number: 1 VGA output number: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 8 Megapixels Similar video signals: HDMI and VGA

Audio inputs: 1 Audio outputs: 1

Privacy Mask: Yes Face detection: Yes, 2 channels, up to 12 frames/sec. People counting: Yes SMD PLUS: Yes, 8 channels (human/vehicle classification) Motion detection: Yes

Processor: Industrial-grade integrated processor Operating system: Embedded LINUX

Simultaneous cameras in reproduction: 1 / 4 / 8 / 9 / 16 Backup Mode: USB Device / Red Synchronized playback: 16

Number of hard drives allowed: 2 Maximum hard disk size (unit): 16 TB HDD type: 3.5" SATA

Number of channels with analysis: 4 channels / 10 IVS rules for each channel

Number of faces: 12 faces processed per second Number of channels with facial recognition: 2 facial recognition channels Database management: Up to 20 databases with 20,000 faces in total / Allows you to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image

Face: Men-women / age / glasses / beard / mask / expression Human body: Style of clothes / color of clothes / color / hat / bags… Non-motorized vehicle: Type / color / helmet / people in vehicle

Material: Metal Dimensions: 375 x 329.3 x 53 mm Net weight: 2650g Weight with packaging: 3870 g Installation: Desktop / Rack Chassis: 1U

Operating temperature: -10ºC ~ 55ºC Use: Interior Maximum humidity: 93%

Power supply mode: AC Voltage: 100V~240V Consumption (w): 10W

---
