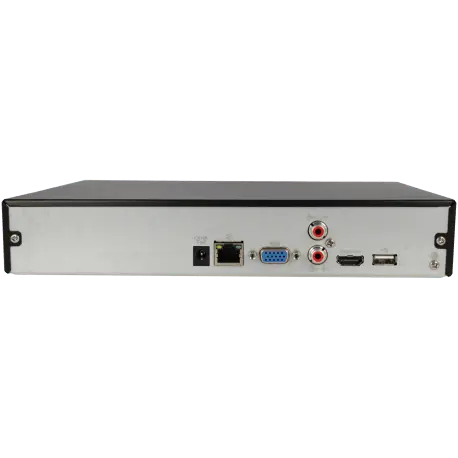

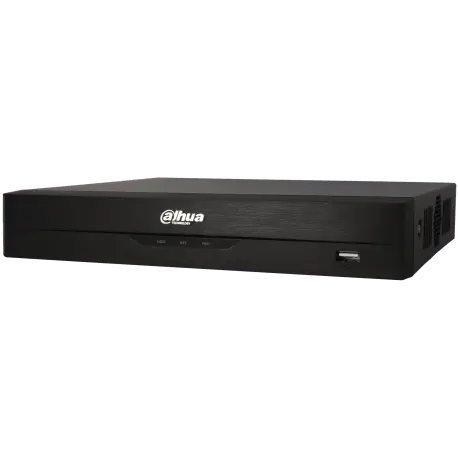

DAHUA IP recorder for 8 channels and 12 mpx resolution / Reference NVR2108HS-I2

DAHUA IP recorder for 8 channels and 12 mpx resolution

Specifications and features: DAHUA IP recorder for 8 channels and 12 mpx resolution

T echnology: IP Series: Series 2 VIDEO IP channels : 8 REGISTRATION Video compression: H.265 / H.264 Recording mode: Manual / Schedule / Motion detection / Alarm Audio compression: PCM / G.711A / G.711U / G.726 Resolutions: 12Mpx / 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx / D1 Input Bandwidth: 80Mbps Output Bandwidth: 60Mbps Maximum recording resolution: 12 MP VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) Similar video signals: HDMI and VGA SOUND Audio inputs: 1 Audio outputs: 1 STORAGE Number of hard disks allowed: 1 Maximum hard disk size (unit): 10 Tb HDD Type: 3.5" SATA ENTRIES EXITS USB2.0: 2 REPRODUCTION AND BACKUP COPY Simultaneous cameras in reproduction: 1 / 4 / 8 / 9 Playback functions: Play / Pause / Stop / Fast forward / Fast backward / Rewind / Play by frame / Full screen / Backup (cut/file) / Partially enlarge / Audio on/off Backup Mode: USB Device Smart Search: Yes NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software Software: SmartPSS App: iDMSS / gDMSS SYSTEM (RECORDERS) Processor: Integrated industrial-grade processor Operating system: Embedded LINUX Smartfan: Yes SMART VIDEO SYSTEM Line crossing: Yes Intrusion: Yes Privacy Mask: Yes Face detection: Yes SMD PLUS: Yes, 4 channels (man/vehicle classification) Motion detection: Yes PERIMETER PROTECTION Number of channels with analysis: 1 channel FACIAL RECOGNITION Number of faces: 4 faces processed per second Number of channels with facial recognition: 1 channel of video facial recognition Database management: Up to 10 databases with 5000 faces in total / Allows to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image MATERIAL AND DIMENSIONS Material: Metal Dimensions: 260 x 232.7 x 47.6mm Net weight: 810g Weight with packaging: 1380 g Installation: Desktop / Rack Chassis: Compact 1U ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 93% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 10W Amperage: 1500mA

---
