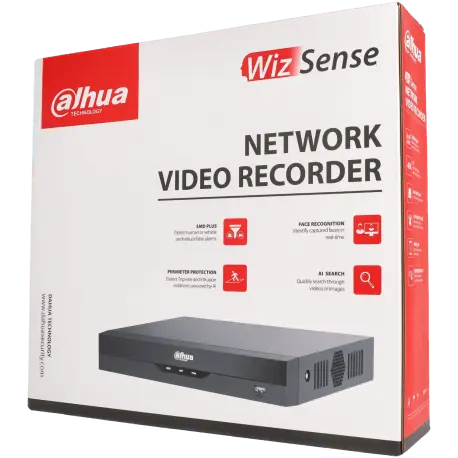

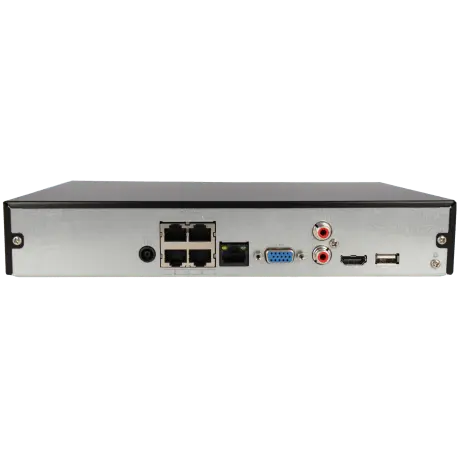

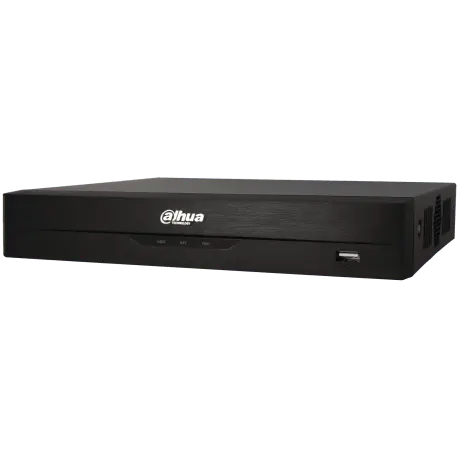

DAHUA IP recorder for 4 channels and 12 mpx resolution with 4 PoE ports / Reference NVR2104HS-P-I2

DAHUA IP recorder for 4 channels and 12 mpx resolution with 4 PoE ports

T echnology: IP Series: Series 2 VIDEO IP channels : 4 REGISTRATION Video compression: H.265 / H.264 Bandwidth IP cameras: 80Mbps Resolutions: 12Mpx / 8Mpx / 5Mpx / 4Mpx / 3Mpx / 2Mpx / 1Mpx / D1 Maximum recording resolution: 12 MP ENTRIES EXITS USB2.0: 2 NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 10 / 100 Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote vision: Web browser (ActiveX) / Smartphone app / Smart PSS software PoE ports: 4 PoE type: 802.3af Software: SmartPSS App: iDMSS / gDMSS VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) SOUND Audio inputs: 1 Audio outputs: 1 SMART VIDEO SYSTEM Line crossing: Yes Intrusion: Yes Privacy Mask: Yes SMD PLUS: Yes, 4 channels (man/vehicle classification) Motion detection: Yes SYSTEM (RECORDERS) Processor: Integrated industrial-grade processor Operating system: Embedded LINUX Smartfan: Yes REPRODUCTION AND BACKUP COPY Simultaneous cameras in reproduction: 1 / 4 Playback functions: Play / Pause / Stop / Fast forward / Fast backward / Rewind / Play by frame / Full screen / Backup (cut/file) / Partially enlarge / Audio on/off Backup Mode: USB Device Smart Search: Yes STORAGE Number of hard disks allowed: 1 Maximum hard disk size (unit): 10 Tb HDD Type: 3.5" SATA PERIMETER PROTECTION Number of channels with analysis: 2 channels Type of identification: Human / vehicle secondary recognition by line crossing and intrusion Smart search: Search by classification (Human / Vehicle) FACIAL RECOGNITION Number of faces: 8 faces processed per second Number of channels with facial recognition: 1 channel of video facial recognition Strange way: Warning of faces not registered in database AI search (artificial intelligence): Up to 8 simultaneous faces Database management: Up to 10 databases with 5000 faces in total / Allows to designate name / gender / date of birth / nationality / address / Identification information can be added to each face image Database application: Each database can apply to video channels independently Actions available after detection: Buzzer / voice indicators / email / snapshot / recording / alarm output / PTZ activation MATERIAL AND DIMENSIONS Material: Metal Dimensions: 260 x 232.7 x 47.6mm Net weight: 860g Weight with packaging: 1860 g Installation: Desktop / Rack Chassis: Compact 1U ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 93% FOOD AND CONSUMPTION Power mode: DC Voltage: 53V Consumption (w): 10W Amperage: 1130mA

---
