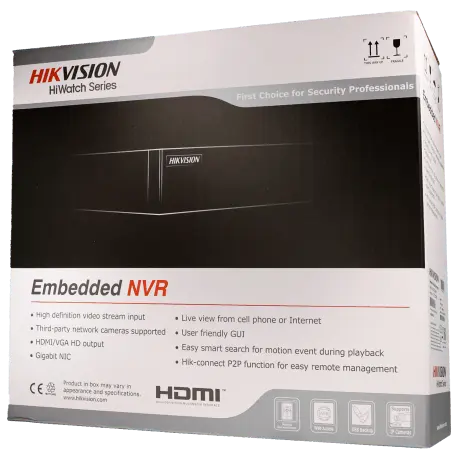

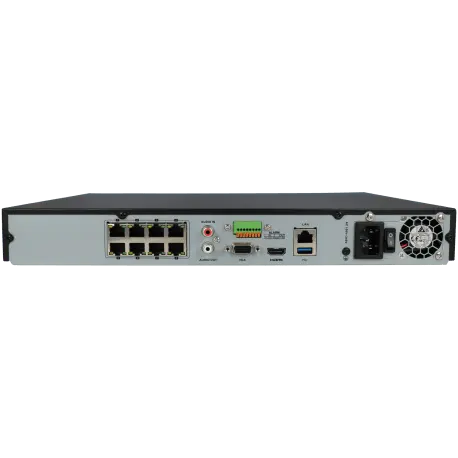

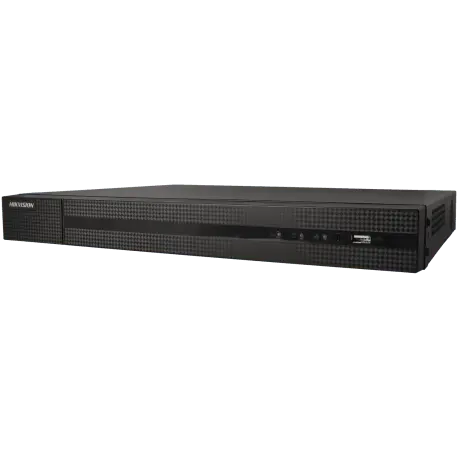

HIKVISION IP recorder for 8 channels and 8 mpx resolution with 8 PoE ports / Reference HWN-5208MH-8P

Specifications and features: HIKVISION IP recorder for 8 channels and 8 mpx resolution with 8 PoE ports

T echnology: IP Series: HiWatch VIDEO IP channels : 8 REGISTRATION Video compression: H.265+ / H.265 / H.264+ / H.264 Resolutions: 8MP / 6MP / 5MP / 4MP / 3MP / 2MP / UXGA / 1MP / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF ANR (Redundant Recording in SD): Yes Input Bandwidth: 80Mbps Output Bandwidth: 160Mbps Maximum recording resolution: 8 MP ENTRIES EXITS USB 2.0: 1 USB 3.0: 1 Alarm input: 4 Alarm output: 1 NETWORK CHARACTERISTICS RJ45 port number: 1 RJ45 speed: 10 / 100 / 1000Mbps Mobile devices: Android / IOS (Apple) ONVIF: Yes PoE ports: 8 PoE type: 802.3at PoE consumption: 120W Software: IVMS App: Hik-Connect VIDEO OUTPUT HDMI output number: 1 Number of VGA outputs: 1 HDMI resolution: 4K (8 Megapixels) VGA resolution: 2 Megapixels (1080p) SOUND Audio inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes REPRODUCTION AND BACKUP COPY Synchronized playback: 8 STORAGE Number of hard disks allowed: 2 Maximum hard disk size (unit): 6 Tb HDD Type: 3.5" SATA MATERIAL AND DIMENSIONS Material: Metal Dimensions: 385 x 315 x 52mm Net weight: 3000g Installation: Desktop / Rack ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: AC Voltage: 100V~240V Consumption (w): 15W Amperage: 1000mA

---
