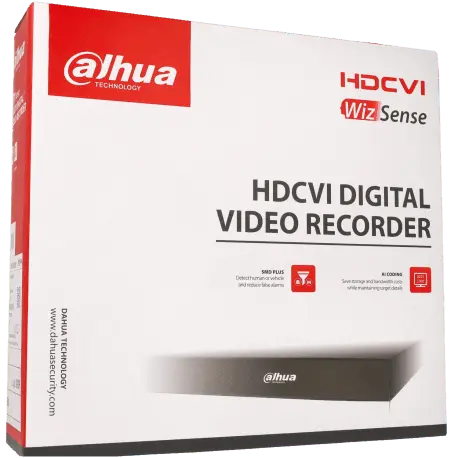

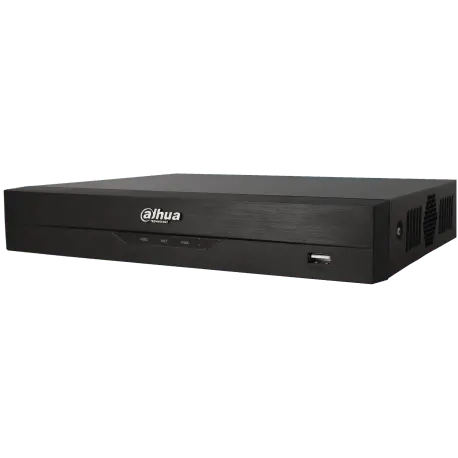

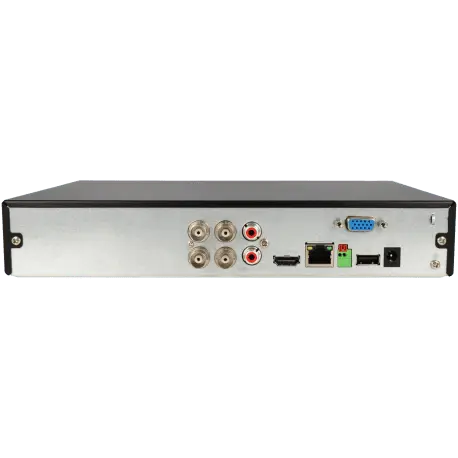

DAHUA IP recorder 4 channels and 1 mpx maximum resolution / Reference XVR4104HS-I

Name: DAHUA IP recorder 4 channels and 1 mpx maximum resolution / Reference XVR4104HS-I
Brand: TSA Distribution
Price: 89.04 EUR
Availability: InStock

Excellent ★★★★★★ Certifié par Trustindex

89,04€

Tax included. Shipping calculated at checkout

In stock

Commande passée avant 15h, expédiée dès aujourd'hui!

Description

DAHUA IP recorder 4 channels and 1 mpx maximum resolution

Specifications and features: DAHUA IP recorder 8 channels and 1 mpx maximum resolution

Technology : 5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP)

Series: Series 4

V IDEO

BNC channels: 4 Video formats: HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 1080P / 720P Resolutions accepted HDTVI: 1080P / 720P Accepted resolutions AHD: 1080P / 720P CVBS cameras: Yes IP cameras accepted: 4 BNC cameras + 1 IP camera Resolution of IP cameras: 2 Megapixels IP channels: 5, replacing BNC channels

REGISTRATION

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 1 Megapixel (720P) HDTVI recording resolution: 1 Megapixel (720p) AHD recording resolution: 1 Megapixel (720p) Frames per second Main stream: 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Frames per second Extra Stream: CIF (1 ~ 15fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Programming (General / Continuous) / MD (Video detection: Motion detection / loss of video / manipulation) / alarm / stop Recording interval: 1 ~ 60 min (default: 60 min) / Pre-record: 1 ~ 30 sec / Post-record: 10 ~ 300 sec Audio compression: G.711A / G.711U / PCM Audio sampling frequency: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 1 Mpx

VIDEO OUTPUT

HDMI output number: 1 VGA output number: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p)

AUDIO

Audio Inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

STORAGE

Admitted hard drive number: 1 Maximum hard disk size (unit): 6 TB HDD type: 3.5" SATA

ENTRIES EXITS

USB2.0: 2 RS485: 1

REPRODUCTION AND BACKUP COPY

Simultaneous cameras in reproduction: 1/4 Search mode: Date / Time / Alarm / Motion detection / Exact search Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device / Red Number of simultaneous channels with IP cameras: 1 / 4 / 6 No. simultaneous channels without IP cameras: 1/4 Warning icon types: Camera title / time / video loss / camera blocking / motion detection / Recording

VIDEO DETECTION AND ALARM

Detection functions: Recording / PTZ / Tour / Video Push / Email / FTP / Snapshot / Buzzer and on-screen guidance Video detection type: Motion detection / MD Zones: 396 (22 × 18)

NETWORK FEATURES

RJ45 port number: 1 RJ45 speed: 100 Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) ONVIF: Yes Remote viewing: Web browser (ActiveX) / Smartphone App / Smart PSS Software Software: SmartPSS App: iDMSS / gDMSS

SYSTEM (RECORDERS)

Processor: Embedded Processor Operating system: Embedded LINUX

SMART VIDEO SYSTEM

SMD PLUS: Yes, 4 channels (human/vehicle classification)

MATERIAL AND DIMENSIONS

Material: Metal Dimensions: 260 x 238 x 48mm Net weight: 860g Weight with packaging: 1370 g Installation: Desktop Chassis: Compact 1U

ATMOSPHERE

Operating temperature: -10°C ~ +45°C Use: Interior Maximum humidity: 90%

FOOD AND CONSUMPTION

Power supply mode: DC Voltage: 12V Consumption (w): 4W Amperage: 1500mA

5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition. 4 channels BNC 1080N (BNC inputs can be converted to IP) 1 IP channel at 2MP (added to BNC inputs) Video compression: AI, H.265+, H.265, H.264+, H.264 HDMI video output (1080P) and VGA output (1080P) Output division: 1, 4 (IP mode disabled); 1, 4, 6 (IP mode enabled) 1 RCA input / 1 RCA audio output Two-way audio via RCA channel Audio compression: G.711a, G.711u, PCM Recording resolution: 1080N, 720P, 960H, D1, CIF Maximum incoming bandwidth 32 Mbps Primary Stream: 1080N, 720P, 960H, D1, CIF (1~25 fps) Secondary stream: CIF (1~15 fps) Recording modes: manual, scheduled, video detection, video loss, burglary, alarm, stop. Recording intervals (1~60 min.), pre-recording (1~30 sec.) and post-recording (10~300 sec.) Independent video sensor configurable per camera (22x18 grid selectable), detection and masking of video losses, diagnostics Playback up to 4 channels SMD Plus: 4 channels, person/vehicle classification Internal capacity for 1 SATA hard drive up to 6TB (sold separately) Multilingual on-screen menu with new and improved GUI Ability to update DAHUA camera firmware from the recorder itself Watchdog software and hardware Watermark to preserve video integrity RJ45 Fast Ethernet network port (100M) ONVIF 16.12 and CGI compatibility Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App) Sending emails with attached photo in case of alarm Send to FTP scheduled or in alarm Ability to send alarms and be connected to alarm reception software (CRA) using the free AlarmSpace software. Possibility of fixed or dynamic IP via the DDNS Evolution service Communication ports: 2 USB 2.0 ports, 1 RS485 port Power supply: 12V DC, 1.5A (<4W, without disks) Storage temperature -20°C ~ +70°C Operating temperature -10°C ~ +45°C Relative humidity 0%~90%. Dimensions: 260(W) 47.6(H) x 237.9mm Weight: 860g

Our online store also offers surveillance cameras, IP cameras and complete video surveillance kits. Here again, our specialists have selected the most famous brands for you, including: Hikvision, Dahua. In addition to these flagship products, TSA Distribution's offering also includes access control systems (video door entry, connected lock). Our specialist home security team is available to assist you from Monday to Friday on 09 52 60 07 67 (non-premium rate call). Do not hesitate to contact us for advice, information, help navigating our site, for a quote or for order tracking. To guarantee your satisfaction, TSA Distribution not only offers quality products at the most competitive prices on the market but also completely free technical installation assistance. Our team is at your disposal to help you configure your alarm, surveillance cameras or access control equipment.
