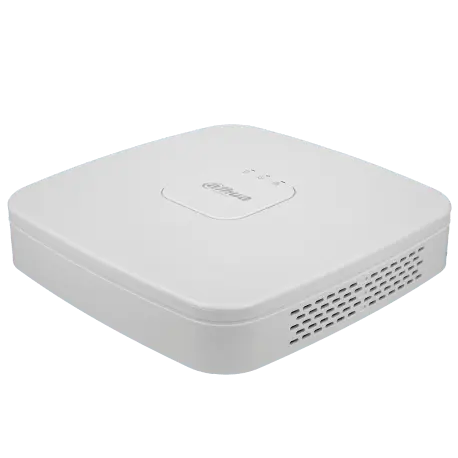

DAHUA IP recorder 4 channels and 1 mpx maximum resolution / Reference XVR4104C-I

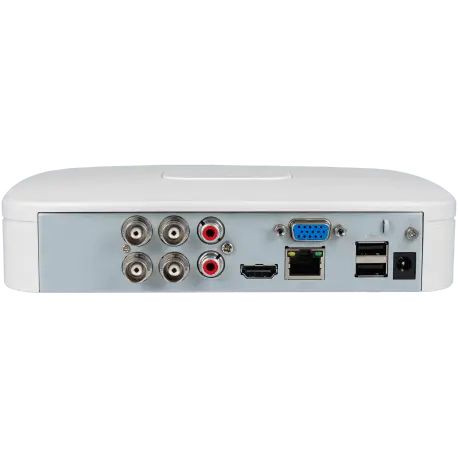

BNC channels: 4 Video formats: HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 1080P / 720P Resolutions accepted HDTVI: 1080P / 720P Accepted resolutions AHD: 1080P / 720P CVBS cameras: Yes IP cameras accepted: 4 BNC cameras + 1 IP camera Resolution of IP cameras: 2 Megapixels IP channels: 5, replacing BNC channels

Video compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 1 Megapixel (720P) HDTVI recording resolution: 1 Megapixel (720p) AHD recording resolution: 1 Megapixel (720p) Frames per second Main stream: 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps) Frames per second Extra Stream: CIF (1 ~ 15fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Programming (General / Continuous) / MD (Video detection: Motion detection / loss of video / manipulation) / alarm / stop Recording interval: 1 ~ 60 min (default: 60 min) / Pre-record: 1 ~ 30 sec / Post-record: 10 ~ 300 sec Audio compression: G.711A / G.711U / PCM Audio sampling rate: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel Maximum recording resolution: 1 Mpx

HDMI output number: 1 VGA output number: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p)

Audio Inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Admitted hard drive number: 1 Maximum hard disk size (unit): 6 TB HDD type: 3.5" SATA

USB2.0: 2

Search Mode: Date / Time / Alarm / Motion Detection / Exact Search Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device / Red Number of simultaneous channels with IP cameras: 1 / 4 / 6 No. simultaneous channels without IP cameras: 1/4 Warning icon types: Camera title / time / video loss / camera blocking / motion detection / Recording

Detection Functions: Recording / PTZ / Tour / Video Push / Email / FTP / Snapshot / Buzzer and Screen Tips Video detection type: Motion detection / MD Zones: 396 (22 × 18)

RJ45 port number: 1 RJ45 speed: 100 Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) ONVIF: Yes Software: SmartPSS App: iDMSS / gDMSS

Processor: Embedded Processor Operating system: Embedded LINUX

SMD PLUS: Yes, 4 channels (human/vehicle classification) (only for analog cameras)

Dimensions: 204.6 x 210.9 x 45.6 mm Net weight: 470g Weight with packaging: 1040 g Installation: Desktop Chassis: Smart 1U

Operating temperature: -10°C ~ +45°C Use: Interior Maximum humidity: 90%

Power supply mode: DC Voltage: 12V Consumption (w): 4W Amperage: 1500mA 5 technologies: IP cameras, HDCVI, HDTVI, AHD and analogue CVBS with automatic signal recognition. 4 channels BNC 1080N (BNC inputs can be converted to IP) 1 IP channel at 2MP (added to BNC inputs) Video compression: AI, H.265+, H.265, H.264+, H.264 HDMI video output (1080P) and VGA output (1080P) Output division: 1, 4 (IP mode disabled); 1, 4, 6 (IP mode enabled) 1 RCA audio input / 1 RCA audio output Two-way audio via RCA channel Audio compression: G.711a, G.711u, PCM Recording resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF Maximum incoming bandwidth of 32 Mbps Primary Stream: 1080N, 720P, 960H, D1, CIF (1~25 fps) Secondary stream: CIF (1~15 ips) Recording modes: manual, scheduled, video detection, video loss, burglary, alarm, stop. Recording intervals (1~60 min.), pre-recording (1~30 sec.) and post-recording (10~300 sec.) Independent video sensor configurable per camera (22x18 grid selectable), detection and masking of video losses, diagnostics Playback up to 4 channels SMD Plus: 4 channels, person/vehicle classification Internal capacity for 1 SATA hard drive up to 6TB (sold separately) Multilingual on-screen menu with new improved GUI Ability to update DAHUA camera firmware from the recorder itself Watch dog software and hardware Watermark to preserve video integrity RJ45 Fast Ethernet network port (100M) ONVIF 16.12 and CGI compatibility Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App) Sending emails with attached photo in case of alarm Send to FTP scheduled or in alarm Ability to send an alarm and be connected to alarm reception software (CRA) via the free AlarmSpace software Possibility of fixed or dynamic IP via the DDNS Evolution service Communication ports: 2 USB 2.0 ports Power supply: 12V DC, 1.5A (<4W, without disks) Storage temperature -20°C ~ +70°C (-20°C ~ +70°C) Operating temperature -10°C ~ +45°C (-10°C ~ +45°C) Relative humidity 0%~90%. Dimensions: 204.6 (L) 45.6 (H) x 210.9 mm Weight: 470g

---
