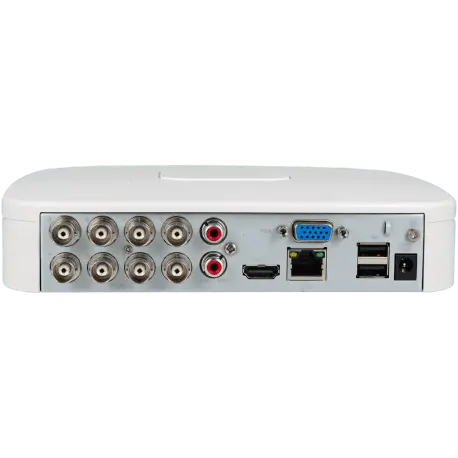

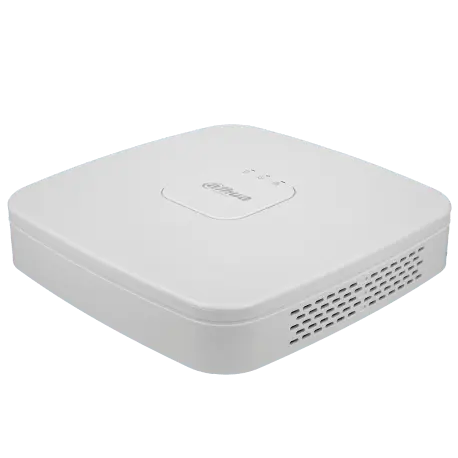

DAHUA IP recorder 8 channels and 1 MP maximum resolution / Reference XVR4108C-I

BNC channels: 8 Video formats: HDCVI / TVI / AHD / CVBS / IP Accepted resolutions HDCVI: 1080P / 720P Resolutions accepted HDTVI: 1080P / 720P Accepted resolutions AHD: 1080P / 720P CVBS cameras: Yes IP cameras accepted: 8 BNC cameras + 2 IP cameras Resolution of IP cameras: 6 Megapixels IP channels: 10, replacing BNC channels

Video compression: H.265+ / H.265 / H.264+ / H.264 IP camera compression: H.265+ / H.265 / H.264+ / H.264 HDCVI recording resolution: 1 Megapixel (720P) HDTVI recording resolution: 1 Megapixels (720p) AHD recording resolution: 1 Megapixel (720p) Frames per second Main stream: Channel 1: 1080N / 720P (1 ~ 25 / 30fps) / others: 1080N / 720P (1 ~ 15fps) / 960H / D1 / CIF (1 ~ 25 / 30fps) Frames per second Extra Stream: CIF (1 ~ 7fps) Video bit rate: 32Kbps ~ 6144Kbps per channel Recording mode: Manual / Programming (General / Continuous) / MD (Video detection: Motion detection / loss of video / manipulation) / alarm / stop Recording interval: 1 ~ 60 min (default: 60 min) / Pre-record: 1 ~ 30 sec / Post-record: 10 ~ 300 sec Audio compression: G.711A / G.711U / PCM Audio sampling frequency: 8KHz, 16 bit per channel Audio bit rate: 64Kbps per channel

HDMI output number: 1 VGA output number: 1 HDMI resolution: 2 Megapixels (1080p) VGA resolution: 2 Megapixels (1080p)

Audio Inputs: 1 Audio outputs: 1 Two-way audio (Full-duplex): Yes

Admitted hard drive number: 1 Maximum hard disk size (unit): 6 TB HDD type: 3.5" SATA

USB2.0: 2

Search mode: Date / Time / Alarm / Motion detection / Exact search Playback functions: Play / Pause / Stop / Rewind / Fast play / Slow Play / Next File / Previous File / Next Camera / Previous Camera / Full Screen / Repeat / Shuffle / Backup Selection / Digital Zoom Backup Mode: USB Device / Red Number of simultaneous channels with IP cameras: 1 / 4 / 8 / 9 / 16 No. simultaneous channels without IP cameras: 1 / 4 / 8 / 9 Warning icon types: Camera title / time / video loss / camera blocked / motion detection / Recording

Detection functions: Recording / PTZ / Tour / Video Push / Email / FTP / Snapshot / Buzzer and on-screen guidance Video detection type: Motion detection / MD Zones: 396 (22 × 18)

RJ45 port number: 1 RJ45 speed: 100 Mbps Maximum number of users: 128 Mobile devices: Android / IOS (Apple) ONVIF: Yes Software: SmartPSS App: iDMSS / gDMSS

Processor: Embedded Processor Operating system: Embedded LINUX

SMD PLUS: Yes, 8 channels (human/vehicle classification) (only for analog cameras)

Dimensions: 204.6 x 210.9 x 45.6mm Net weight: 500g Weight with packaging: 1070 g Install: Desktop Chassis: Smart 1U

Operating temperature: -10°C ~ +45°C Use: Indoor Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 7W Amperage: 1500mA

---
