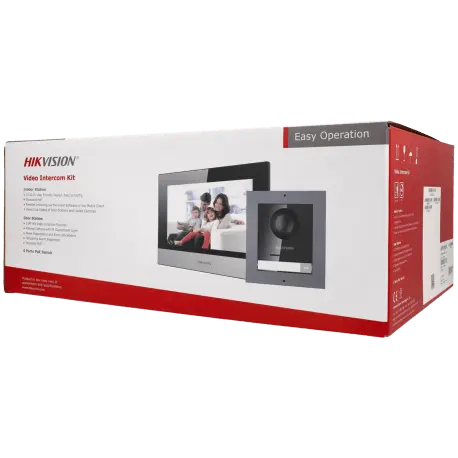

HIKVISION Video Doorphone Kit / Reference DS-KIS602 Europe

HIKVISION Video Doorphone Kit

Specifications and features: HIKVISION Video Doorphone Kit

Technical characteristics: REF: DS-KD8003-IME1/Surface/EU HIKVISION PRO IP surface video door entry unit T echnology: IP Number of accommodations: 1 VIDEO (VIDEO ENTRIES) Resolution: 2 MP Horizontal viewing angle: 180º Diagonal viewing angle: 96º Video Compression: H.264 ENTRIES EXITS Exit push button: 2 NO/NC relay: 2 AUDIO (VIDEO DOORPHONE) Audio input: Multidirectional microphone Audio output: Built-in speakers Audio compression: G.711 NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR) Network protocol: TCP / IP TCP/IP connection: 10M/100Mbps OPENING Call elements: Single button MATERIAL AND DIMENSIONS Dimensions: 98 x 99.8 x 43.9mm Installation: Surface ATMOSPHERE Working Temperature: -40ºC~60ºC Degree of protection: IP65 Use: Outdoor Max Humidity: 95% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 10W Amperage: 1000mA Power PoE: Yes PoE Type: PoE 802.3af Technical specifications: REF: DS-KH6320-WTE1/EU HIKVISION PRO 7" IP Monitor Technology: IP SCREEN Type: LCD Size: 7" Resolution: 1024 x 600 Touch: Yes ENTRIES EXITS RS485: 1 Alarm input: 8 NO/NC relay: 2 AUDIO (VIDEO DOORPHONE) Audio input: Multidirectional microphone Audio output: Built-in speakers Audio compression: G.711 NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR) Network protocol: TCP / IP Memory slot: SD up to 32Gb TCP/IP connection: 10M/100Mbps WiFi: Yes Wi-Fi type: IEEE802.11 b / g / n MATERIAL AND DIMENSIONS Dimensions: 200 x 140 x 15.1mm Net weight: 330g Weight with packaging: 630 g ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 6W Amperage: 1000mA Power PoE: Yes PoE Type: PoE 802.3af

---
