DAHUA Video Entry Kit / Reference KTP01L(S)

DAHUA Video Doorphone Kit

Specifications and features: DAHUA Video Doorphone Kit

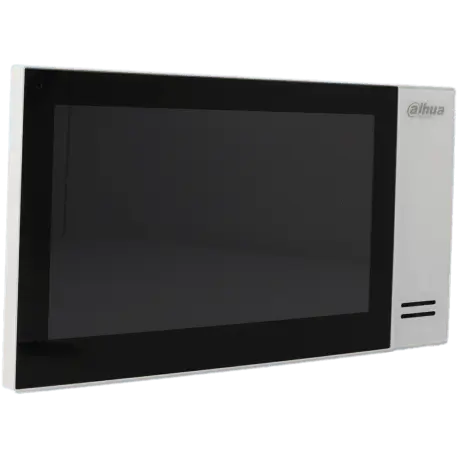

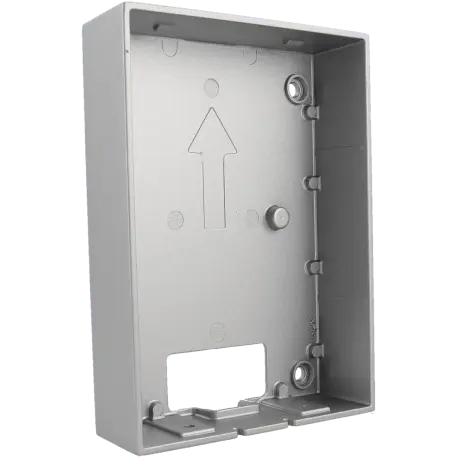

Technical specifications: REF: VTM115 DAHUA area support Support type : Surface support MATERIAL AND DIMENSIONS Material: Aluminum Dimensions: 129 x 95 x 28.5mm Weight with packaging: 265g Installation: Surface Technical specifications: REF: VTH2421FW-P DAHUA 7" IP monitor Technology: IP SYSTEM (RECORDERS) Processor: Embedded Processor Operating system: Embedded LINUX SCREEN Type: LCD Size: 7" Resolution: 1024 x 600 Touch: Yes ENTRIES EXITS Alarm input: 6 Alarm output: 1 AUDIO (VIDEO DOORPHONE) Audio input: Multidirectional microphone Audio output: Built-in speakers Audio compression: G.711A/G.711U/PCM NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR) Memory slot: SD up to 32Gb MATERIAL AND DIMENSIONS Dimensions: 119.6 x 221.5 x 21.5mm Weight with packaging: 640 g ATMOSPHERE Working Temperature: -10ºC~55ºC Max Humidity: 95% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V Consumption (w): 7W Amperage: 580mA Standby power consumption: ≤4W Consumption on: ≤6W Technical specifications: REF: VTO2201F-P Surface / recessed DAHUA IP video door entry unit Technology: IP VIDEO (VIDEO ENTRIES) Resolution: 2 MP Sensor: CMOS Horizontal viewing angle: 139º Diagonal viewing angle: 159º Focal length: 2mm Night vision: Yes Video Compression: H.265 Day / Night: ICR Sensor Size: 1/2.9" ENTRIES EXITS Door sensor: 1 Exit push button: 1 Lock output: 1 Alarm output: 1 AUDIO (VIDEO DOORPHONE) Audio input: 1 Audio output: Built-in speakers Two-way audio: Yes Audio compression: G.711A/G.711U/PCM NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR) Network protocol: SIP / P2P / IPv4 / UPnP / SNMP / DNS / DDNS / RTSP / RTP / TCP / UDP TCP/IP connection: 10M/100Mbps ONVIF: Yes SYSTEM (RECORDERS) Processor: Embedded Processor Operating system: Embedded LINUX GENERAL CHARACTERISTICS (VIDEO ENTRY UNITS) Anti-tamper: Yes Led indicator: Yes, 3 OPENING Call elements: Single button MATERIAL AND DIMENSIONS Dimensions: 130 x 96 x 28.5mm Net weight: 350g Weight with packaging: 470 g Installation: Surface / Recessed ATMOSPHERE Operating Temperature: -30ºC~60ºC Degree of protection: IP65 Anti-vandal: IK07 Use: Indoor / Outdoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: DC Voltage: 12V~24V Consumption (w): 6W Amperage: 1000mA Power PoE: Yes PoE Type: PoE 802.3af Technical specifications: REF: PFS3005-4ET-36 DAHUA port switch with 4 PoE ports Technology: IP CHARACTERISTICS (SWITCH) Supported data rate: 1 Gbps Flow control: Yes Buffer memory: 0.448 Mb ETHERNET PORTS POE ports: 4 Speed ​​POE ports: 10 / 100 Uplink port speed: Not available NETWORK STANDARD IEEE802.3af: Yes IEEE802.3at: Yes SYSTEM (SWITCH) MAC address table: 1K MATERIAL AND DIMENSIONS Dimensions: 170 x 100 x 35mm Net weight: 500g Weight with packaging: 910 g ATMOSPHERE Working Temperature: -10ºC~55ºC Use: Indoor Max Humidity: 90% FOOD AND CONSUMPTION Power mode: AC Voltage: 100V~240V Maximum consumption per port (PoE): 30W Maximum switch consumption (PoE ports): 36W

---

Our online store also offers surveillance cameras, IP cameras and complete video surveillance kits. Here again, our specialists have selected the most reputable brands for you, including: Hikvision, Dahua. In addition to these flagship products, TSA Distribution's offer also includes access control systems (video door entry system, connected lock). Our team specializing in domestic security is at your disposal from Monday to Friday on 09 52 60 07 67 (non-surcharged call). Do not hesitate to contact us for advice, information, navigation assistance on our site, for a quote or for order follow-up. In order to guarantee your satisfaction, TSA Distribution not only offers quality products at the most competitive prices on the market, but also technical assistance for installation that is totally free. Our team are at your disposal to help you configure your alarm, your surveillance cameras or your access control equipment.

---
