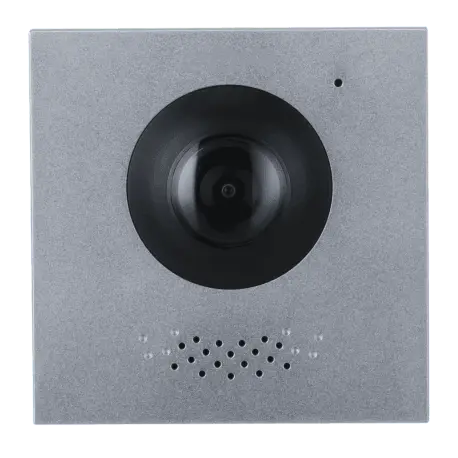

Surface DAHUA IP video door entry unit / Reference VTO4202F-P

R esolution: 2 Mpx Sensor: CMOS Horizontal viewing angle: 160º Diagonal viewing angle: 180º Focal length: 1.95mm Night vision: Yes Video Compression: H.264

RS485: 1 Door sensor: 1 Exit push button: 1 Alarm output: 1

Audio input: Multidirectional microphone Audio output: Built-in speakers Audio compression: G.711A/G.711U/PCM

Network protocol: TCP / IP TCP/IP connection: 10M/100Mbps

Processor: SoC processor Operating system: Embedded LINUX

Anti-tamper: Yes

Call elements: Simple buttons

Dimensions: 100 × 49.90 × 28.50mm Net weight: 350g Weight with packaging: 400 g Installation: Surface / Recessed

Operating temperature: -20°C ~ +60°C Degree of protection: IP65 Anti-vandal: IK07 Use: Outdoor Max Humidity: 90%

Power mode: DC Voltage: 12V Consumption (w): 12W Power PoE: Yes Camera module for VTO4202F-X series video door entry system Support video and voice communication 2-megapixel fish-eye camera with 160° angle Modules make the device highly expandable Compatible with 2-wire interface and RJ45 interface Anodized aluminum panel Degree of protection IP65 Protection against vandalism IK07 SoC processor Embedded Linux operating system H.264 video compression 2 megapixel CMOS sensor 1.95mm fisheye camera 160°(H), 82°(V), 180°(D) viewing angle Day/night mode IR illumination PCM audio compression, G.711A, G.711U It incorporates an omnidirectional microphone Incorporates a loudspeaker Digital communication method Support remote unlock Automatic image captures Web Setup Release button for opening the door Detects the magnetic state of the door NC/COM/NA door control 1 alarm output 1 half-duplex RS485 port 10/100Mbps Ethernet port Network protocol: IPv4, RTSP, RTP, TCP, UDP, SIP, P2P Power input: 12V DC, 2-wire IP interface, PoE Output power: 12V DC, 100mA Consumption: ≤12W Degree of protection IP65 Protection against vandalism IK07 Constructed of anodized aluminum Operating temperature of -20C~+60°C 10%~90% relative humidity

---
