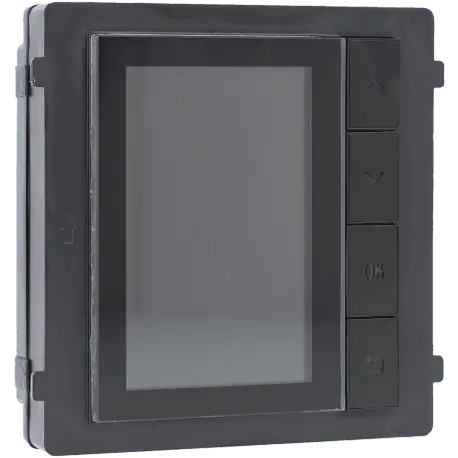

Surface HIKVISION IP video door entry system / Reference DS-KD-DIS

P rocessor: Embedded MCU Processor

Screen: Yes Screen type: LCD Screen resolution: 320 x 480

Call elements: 4 simple buttons

Dimensions: 98.5 x 100 x 34.2mm Weight with packaging: 350 g Installation: Surface / Recessed

Operating temperature: -20°C ~ +60°C Degree of protection: IP65 Max Humidity: 95%

Power supply mode: DC (From the other module) Voltage: 12V Consumption (w): 3W Amperage: 250mA 3.5" LCD display with 320x480 resolution 4 backlight buttons Ability to add up to 500 contacts Number of dialings and calls to the internal unit with keyboard module Door unlocking by PIN code with keypad module Many languages Built-in MCU processor Storage up to 64MB 8MB flash memory 3.5" LCD (320x480) 4 backlit physical buttons Modular connection: 1 input / 1 output Power input: 12V DC (from another module) 12V DC power output (to another module) ≤3W consumption -20°C ~ +60°C operating temperature Operating humidity of 10%~95% Degree of protection IP65 Recessed or surface installation

---
