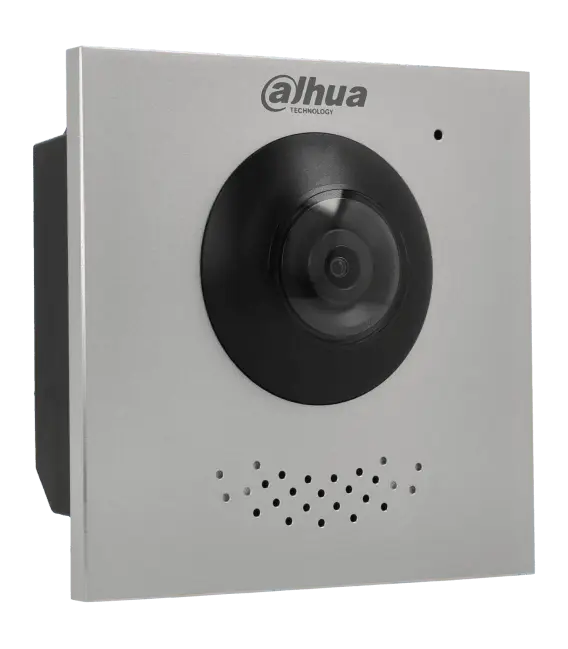

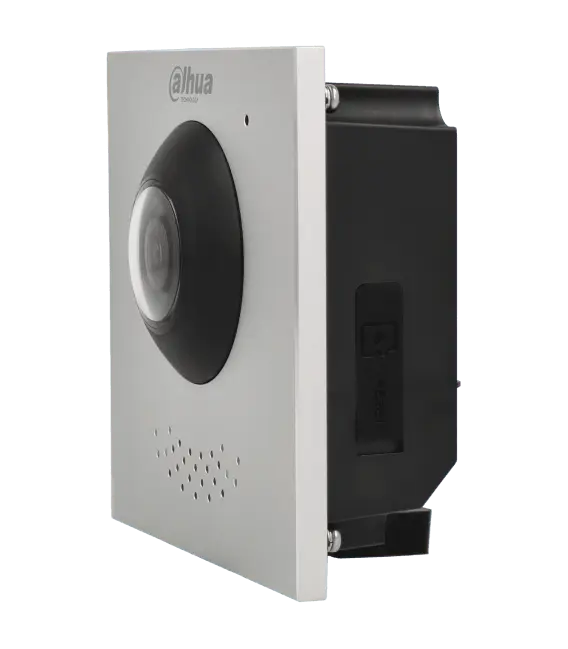

DAHUA modular outdoor station
Specifications and features: DAHUA modular outdoor station
T echnology:
2 wires / IP
Type: Modular outdoor station
MATERIAL AND DIMENSIONS
Dimensions :
100 x 100 × 49.3 mm
Net weight:
350g
Weight with packaging:
400 g
Installation:
Surface / Recessed
NETWORK CHARACTERISTICS (VIDEO ENTRY MONITOR)
Network protocol: SIP / P2P / IPv4 / UPnP / SNMP / DNS / DDNS / RTSP / RTP / TCP / UDP
TCP/IP connection: 10M/100Mbps
ONVIF: Yes
GENERAL CHARACTERISTICS (VIDEO ENTRY UNITS)
Led indicator: Yes , 3
SYSTEM (RECORDERS)
Processor: Embedded Processor
Operating system: Embedded LINUX
ATMOSPHERE
Operating Temperature: -30ºC~60ºC
Degree of protection: IP65
Anti-vandal: IK07
Use: Indoor / Outdoor
Max Humidity: 90%
AUDIO (VIDEO DOORPHONE)
Audio input: 1
Audio output: Built-in speakers
Two-way audio: Yes
Audio compression: G.711A/G.711U/PCM

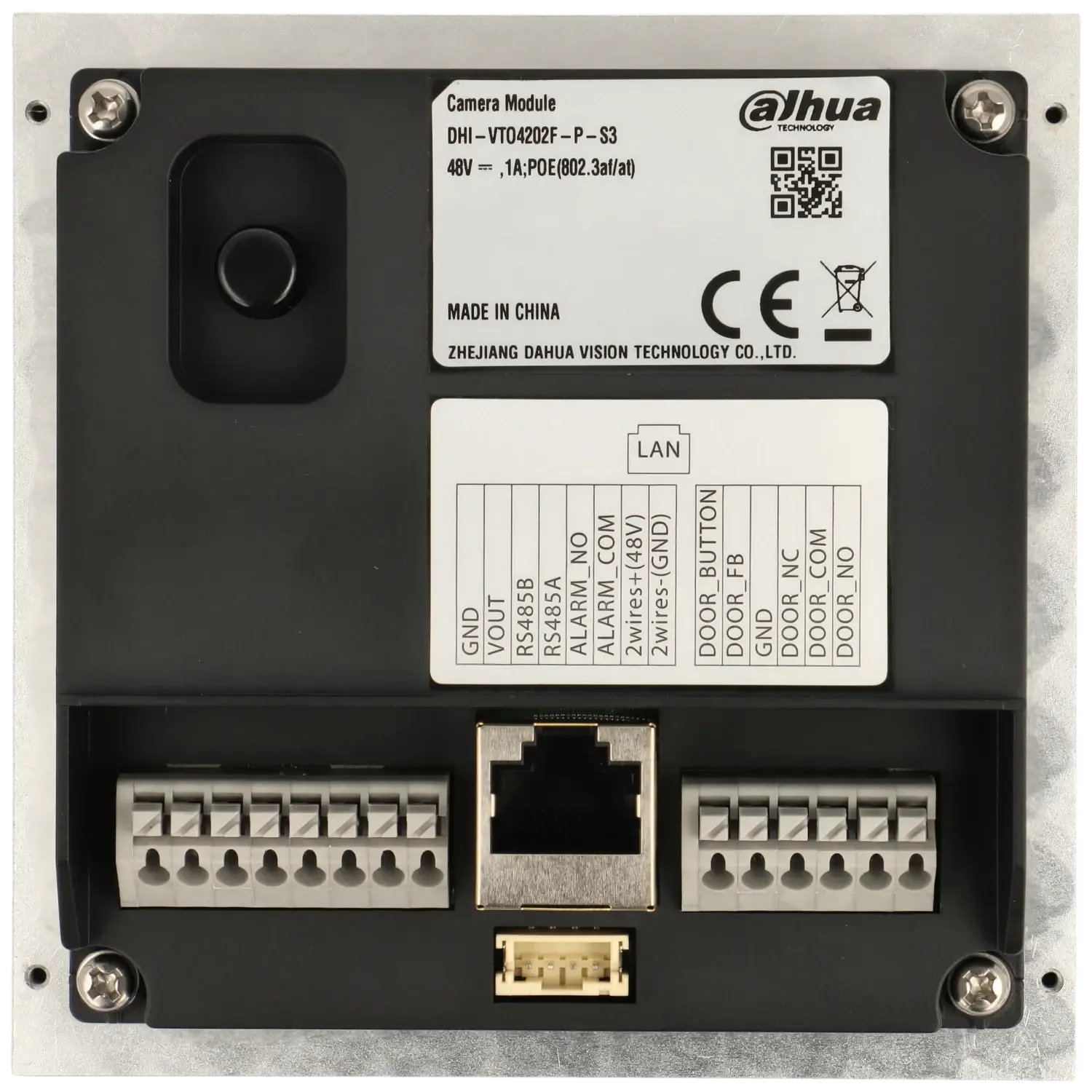

ENTRIES EXITS
RS485: 1
Door sensor: 1
Exit push button: 1
Alarm input: 1
Lock input: 1
FOOD AND CONSUMPTION
Power mode: DC
Voltage: 48V
Consumption (w): 12W
Amperage: 1000mA
Power PoE: Yes
PoE Type: PoE 802.3af
Power output: 1 12V / 100mA
VIDEO (VIDEO ENTRIES)
Resolution: 2 MP
Sensor: CMOS
Horizontal viewing angle: 169º
Diagonal viewing angle: 177º
Focal Length: 1.9mm
Night vision: Yes
Video Compression: H.265
Day / Night: ICR
Sensor Size: 1/2.5"
